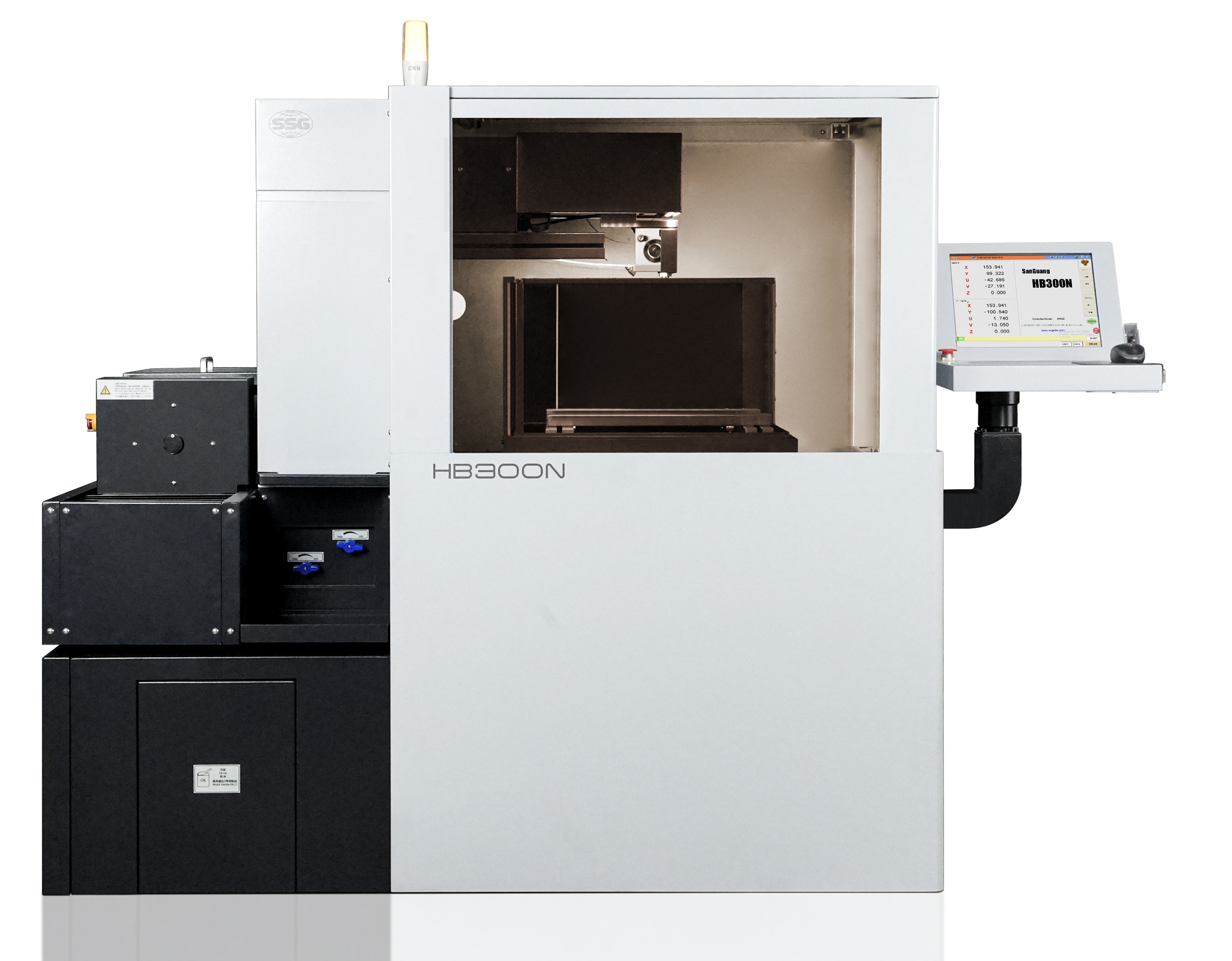

High-speed wire cutting relies on continuous, uninterrupted electrical discharges, but debris accumulation in the kerf remains the primary cause of wire breakage and surface defects. Inadequate flushing leads to secondary sparking, localized overheating, and dimensional inaccuracies, particularly in tall, thin, or interrupted cuts where debris evacuation is restricted. When swarf builds up inside the cut zone, the spark gap becomes highly unstable, forcing the generator to compensate and slowing down the entire machining operation. Establishing baseline flushing parameters and understanding how they interact with electrical settings and wire tension is critical for maintaining stability. Operators cannot rely on default generator settings alone to clear the cut zone effectively. This guide details the technical evaluation of flushing mechanisms and exact parameter adjustments required to maximize uptime on a Molybdenum Wire EDM Machine.
Flushing pressure must be balanced against wire tension; excessive pressure causes wire deflection and geometric errors, while insufficient pressure causes short circuits.
Optimal debris evacuation in molybdenum systems requires synchronizing rapid wire speeds (often around 10 m/s) with targeted upper and lower nozzle alignment to exploit the physical "drag" of the wire.

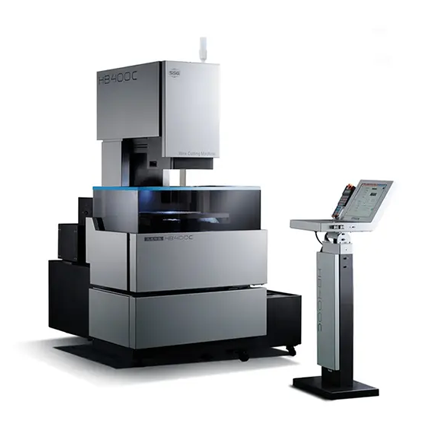

Evaluating a machine’s onboard filtration and programmable pump capacity is as critical as the generator settings for achieving a High Efficiency Wire EDM Machine setup.
Baseline electrical settings (e.g., Gap voltage 70 V, pulse on 6 μs, off 30 μs) must be dynamically adjusted based on real-time flushing conditions, workpiece thickness, and wire tensile limits.
Dielectric fluid serves three primary functions during the cutting process. It cools the cutting zone, restores the dielectric gap after each discharge, and evacuates eroded particles from the kerf. Without effective fluid management, the entire cutting operation becomes unstable. The fluid must penetrate the microscopic kerf consistently to maintain a stable spark gap. If the fluid fails to reach the active cutting zone, the process breaks down rapidly.
The rapid reciprocating motion of the wire creates a mechanical viscous drag effect. Molybdenum wire typically travels at speeds between 10 and 12 meters per second on the storage drum. This high-speed movement physically draws dielectric fluid into the micro-gap, pulling it down from the upper nozzle and up from the lower nozzle. The drag effect helps flush out microscopic swarf generated during the spark erosion process. Understanding this drag is essential because it means wire speed directly impacts flushing efficiency.
Poor flushing traps swarf inside the kerf. Trapped debris alters the conductivity of the dielectric gap. This leads to uncontrolled secondary discharges between the wire and the suspended particles, rather than between the wire and the workpiece. Secondary sparking degrades the surface finish, causes localized pitting on the workpiece, and wastes electrical energy. It also increases the physical wear on the molybdenum wire, reducing its operational lifespan.
Consistent fluid volume preserves the high tensile strength of the wire. Molybdenum withstands significant thermal stress during operation, handling thousands of sparks per second. However, localized heat buildup from inadequate cooling will cause immediate wire failure. Maintaining proper fluid flow prevents these thermal spikes. When the fluid flow is interrupted even for a fraction of a second, the wire temperature spikes, leading to a catastrophic break and forcing the operator to rethread the machine.
Operators must calibrate physical, electrical, and mechanical parameters to achieve optimal flushing. A systematic approach to these adjustments prevents unpredictable cutting behavior. Precision Wire Cutting EDM requires strict control over nozzle positioning, pressure, and wire tension. You cannot set these parameters once and forget them; they require constant monitoring and adjustment based on the specific job.
Maintain a minimum distance between the nozzle and the workpiece. The standard clearance is typically 0.1mm to 0.2mm. This tight gap prevents fluid pressure drops before the dielectric enters the kerf. Improper upper and lower nozzle alignment destroys fluid column integrity. Misaligned nozzles cause turbulence, reducing the effective cooling rate and scattering the fluid away from the cut zone.
When setting up a job, operators must physically check the nozzle clearance using shim stock. Relying on visual estimates often leads to gaps that are too large, resulting in a massive loss of flushing pressure. The upper nozzle should sit as close to the top surface of the workpiece as physically possible without risking a collision during rapid movements. The lower nozzle must be adjusted similarly, ensuring it hugs the bottom of the workpiece tightly.
Establish baseline pressure settings based on material thickness. Thin plates require low pressure to prevent wire deflection. Tall blocks demand high pressure to force fluid through the deep cut. Operators must balance aggressive flushing against the risk of bowing the wire. If you apply maximum pressure to a 10mm thick plate, the fluid will simply push the wire out of a straight line, destroying your dimensional accuracy.
Workpiece Thickness | Recommended Flushing Pressure | Wire Tension Adjustment | Expected Fluid Behavior |
|---|---|---|---|
Under 20mm | Low (0.2 - 0.4 MPa) | Standard | Gentle flow, minimal splash |
20mm - 100mm | Medium (0.5 - 0.8 MPa) | Slightly Increased | Steady column, moderate splash |
100mm - 200mm | High (0.9 - 1.2 MPa) | Maximum Allowable | Aggressive jet, heavy splash |
Over 200mm | Maximum (1.2+ MPa) | Maximum Allowable | High velocity, requires shielding |
High-pressure dielectric jets exert significant lateral force on the wire. You must adjust mechanical or automated tension systems to counteract this pressure. Low-tension wire will bow under aggressive flushing. This bowing creates taper defects when clearing deep channels. Verify tension settings daily using a tension meter, ensuring the wire remains taut enough to resist the fluid pressure without exceeding its yield strength.
On machines with manual tensioning weights, operators must add or remove weights based on the flushing pressure required for the job. If you are cutting a 150mm block of D2 tool steel, you need high flushing pressure. Consequently, you must increase the wire tension to keep the wire perfectly vertical. Failure to balance these two forces results in a part that is wider in the middle than at the top and bottom, a classic "belly" defect.
Match standard molybdenum wire speeds with fluid injection rates. Rapid wire movement assists fluid entry into the cut. Adjust pulse on and off times when flushing conditions are suboptimal. Increasing the pulse off-time allows more time for debris clearing. A common starting point is 6 μs on and 30 μs off, but this must be tweaked based on how well the fluid is clearing the kerf.
If you observe the ammeter fluctuating wildly, it indicates that debris is trapped in the gap. The immediate response should be to increase the pulse off-time. This reduces the cutting speed but stabilizes the process by giving the dielectric fluid a longer window to wash away the swarf before the next discharge cycle begins. Once the ammeter stabilizes, you can slowly decrease the off-time to regain cutting speed.
Standard flushing parameters often fail when processing complex part geometries. Operators must adjust settings based on specific physical features. Understanding how fluid behaves in restricted spaces prevents unexpected downtime. You cannot treat a solid block of steel the same way you treat a part with multiple cross-holes or varying thicknesses.
Tall cuts experience severe pressure drops in the center of the workpiece. Fluid injected from the top and bottom nozzles struggles to reach the middle. Use staged pressure increases to force fluid deeper. Specialized nozzle shapes can also direct flow more aggressively into the kerf. When cutting stepped workpieces, the nozzle clearance changes drastically as the wire moves from a thick section to a thin section.
Program the machine to pause and allow the operator to adjust the upper nozzle height when transitioning between steps.
Reduce flushing pressure immediately before the wire exits a thick section to prevent sudden wire deflection.
Increase pulse off-time when cutting the thickest sections to compensate for the reduced fluid flow in the center of the cut.
Monitor the return fluid color; dark fluid indicates heavy swarf concentration, requiring more pressure or longer off-times.
Thin sheets are highly susceptible to wire vibration. High flushing pressure easily deflects the wire during thin cuts. Calibrate a lower-pressure, steady-flow state to maintain geometric accuracy. This prevents the wire from washing out the corners of delicate parts. When stacking thin sheets for batch cutting, ensure they are clamped tightly together to prevent fluid from forcing its way between the layers and causing the sheets to separate.
If fluid gets between stacked sheets, it creates a secondary gap. The wire will attempt to spark against the fluid-filled gap, leading to erratic cutting and frequent wire breaks. Always use solid clamping techniques and consider applying a thin layer of conductive adhesive between the sheets to keep them perfectly flush and eliminate internal voids.
Fluid pressure drops rapidly when the wire enters a void or cross-hole. This sudden loss of cooling can snap the wire instantly. Reduce flushing pressure temporarily during tight cornering. Lower pressure prevents wire bowing and maintains strict geometric tolerances. When the wire enters a pre-drilled hole, the fluid suddenly has a massive escape route, dropping the pressure in the actual cutting gap to near zero.
To combat this, operators must anticipate interrupted cuts. Slow down the feed rate and reduce the generator power just before the wire breaks into the void. Once the wire has fully crossed the void and re-engaged with solid material, allow the fluid pressure to build back up before resuming normal cutting speeds. This manual intervention is critical for preventing wire breaks on complex extrusion dies.
Cutting tool steels and carbides generates high-density particulates. These heavy particles are difficult to flush out of the kerf. Increase flow rates and adjust pulse intervals to handle this specific particulate size. Slower cutting speeds may be necessary to maintain a clean gap. Carbide, in particular, produces a very fine, heavy sludge that tends to settle at the bottom of the kerf if the lower flushing pressure is inadequate.
When machining carbide, bias the flushing pressure slightly higher on the bottom nozzle. This helps push the heavy sludge upward and out of the cut. Additionally, monitor the conductivity of the dielectric fluid closely. Carbide swarf can rapidly degrade the fluid quality, requiring more frequent filter changes and fluid maintenance to keep the cutting process stable.

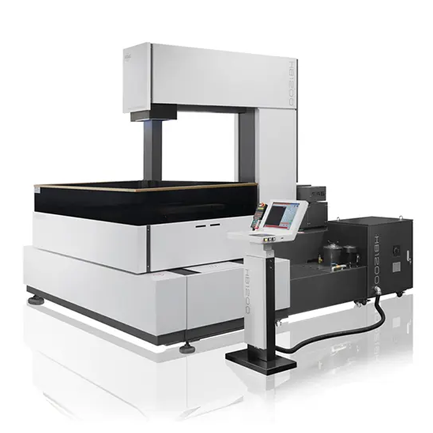

The fluid delivery system dictates the overall stability of the cutting process. Buyers must scrutinize pump systems and filtration capabilities. A CNC Molybdenum Wire EDM Machine relies heavily on consistent dielectric quality. If the machine cannot deliver clean fluid at a consistent pressure, the best generator in the world will not save your parts.
Inverter-driven pumps offer precise, programmable pressure adjustments. Manual valve systems lack the responsiveness needed for complex geometries. Programmable pumps allow the machine to alter pressure automatically during interrupted cuts. This dynamic control significantly reduces wire breakage rates. When evaluating a machine, look at the pump specifications. A high-volume, multi-stage centrifugal pump is vastly superior to a standard single-stage pump for deep cutting applications.
The ability to program flushing pressure via the CNC control is a massive advantage. It allows the programmer to embed pressure changes directly into the G-code. For example, the code can command a pressure drop just before a sharp corner, execute the corner at low pressure to prevent wire deflection, and then ramp the pressure back up for the straightaway. This eliminates the need for the operator to stand at the machine and manually turn valves.
Evaluate the micron ratings of the filters and the total tank capacity. Poor filtration introduces dirty fluid back into the kerf. Contaminated fluid negates optimal flushing settings and causes secondary sparking. High-capacity tanks allow particulates more time to settle out of suspension before the fluid reaches the filters, extending filter life.
Check filter micron ratings regularly to ensure adequate particulate removal.
Monitor tank volume to prevent thermal buildup in the dielectric fluid.
Inspect pump seals to prevent air from entering the high-pressure lines.
Verify that the filtration system can handle the specific materials being cut.
Clean the settling tank manually every month to remove heavy sludge buildup.
Ensure the clean fluid tank is completely isolated from the dirty fluid return line.
Assess the operational differences between water-based emulsions and specialized EDM oils. High-speed molybdenum systems typically use specific water-based mixtures. Fluid viscosity directly impacts flushing efficiency in microscopic kerfs. Thinner fluids penetrate deep cuts more effectively. The mixing ratio of the emulsion is critical. Too much water leads to rust on the machine and workpiece. Too much concentrate makes the fluid too thick, reducing its ability to flush out fine swarf.
Operators must use a refractometer to check the fluid concentration daily. Do not rely on visual appearance or smell. Maintaining the exact manufacturer-recommended concentration ensures the fluid has the correct dielectric strength and viscosity. If the fluid becomes too conductive, the spark gap widens, reducing cutting accuracy and surface finish quality.
Operational failures frequently trace back to improper flushing setups. Identifying and resolving these issues quickly keeps production on schedule. Strict verification protocols prevent most common defects. When a machine starts breaking wire repeatedly, the flushing system should be the first thing you check, not the generator settings.
Perform visual inspections using a coaxial nozzle jet alignment check. The fluid stream must be perfectly straight and centered on the wire. Use paper or shim tests to verify true nozzle-to-workpiece clearance. Never rely solely on digital readouts for physical gap measurements. Turn on the high-pressure flush without the wire running and observe the fluid column. It should look like a solid glass rod. If it sprays or splatters immediately upon exiting the nozzle, the nozzle is damaged or partially clogged.
Check the condition of the conductive blocks and guide wheels while inspecting the nozzles. Worn guide wheels allow the wire to vibrate, which disrupts the fluid column. Replace any grooved or worn components in the wire path to ensure the wire remains perfectly stable as it passes through the nozzles.
Air entering the fluid line causes erratic sparking and sudden wire breaks. The pump will often sound irregular when cavitation occurs. Bleed the fluid lines completely during setup. Verify pump seal integrity if air pockets persist in the system. Air bubbles in the dielectric fluid act as insulators. When an air bubble passes through the spark gap, it interrupts the discharge. When the bubble clears, the sudden rush of fluid causes a massive power spike, snapping the wire.
To bleed the lines, open the bypass valves near the nozzles and run the pump at low pressure until a steady stream of fluid flows out without any sputtering. Check all hose clamps and fittings on the suction side of the pump. Even a microscopic leak on the suction side will draw air into the system, ruining the cutting stability.
Parts showing dimensional errors in the center of the cut indicate wire deflection. This "belly" defect occurs when flushing pressure overcomes wire tension. Balance upper and lower flushing pressures carefully. Verify that the wire tension mechanism is functioning correctly. If the upper nozzle is pushing at 1.0 MPa and the lower nozzle is pushing at 0.5 MPa, the fluid will force the wire downward and outward, creating a severe taper.
Adjust the flow valves so that the fluid columns from the top and bottom meet exactly in the middle of the workpiece thickness. You can test this by running the flush without a workpiece in place and observing where the two fluid streams collide. Adjust the valves until the collision point is centered in the gap.
Establish a strict schedule for cleaning nozzles. Check fluid conductivity and concentration daily. Replace filters before they reach maximum capacity to maintain baseline stability. Consistent maintenance prevents gradual degradation of cutting performance. Do not wait for the pressure gauge to drop before changing the filters. By the time the pressure drops, you have already been cutting with restricted flow for hours.
Remove the nozzles weekly and clean them in an ultrasonic bath. Microscopic swarf can build up inside the nozzle orifice, altering the spray pattern. Inspect the O-rings sealing the nozzles to the machine head. A leaking O-ring reduces pressure at the nozzle tip and sprays fluid all over the work area instead of into the kerf.
Audit current machine flushing pressures against your part defect rates to identify correlations between fluid flow and dimensional errors.
Verify physical nozzle clearances using shim stock before starting complex cuts to ensure maximum fluid pressure reaches the kerf.
Inspect and replace dielectric filters on a strict schedule to ensure clean fluid delivery and prevent secondary sparking.
Schedule a test cut to evaluate programmable flushing controls on a High Efficiency Wire EDM Machine to see how dynamic pressure adjustments improve part quality.
A: Ideal pressure depends on workpiece thickness. Thin plates require low pressure (0.2 - 0.4 MPa) to prevent wire deflection. Tall blocks over 100mm require high pressure (0.9 - 1.2 MPa) to force fluid through the deep kerf. Always balance pressure against wire tension.
A: In tall cuts, fluid struggles to reach the center of the kerf. This lack of fluid causes localized overheating and traps debris. The trapped swarf creates secondary sparks, which rapidly degrade the wire and lead to immediate breakage.
A: Yes. Poor flushing leaves debris in the cut, altering the spark gap. This causes erratic discharging and degrades the surface finish. Additionally, excessive flushing pressure can bow the wire, creating taper or "belly" defects in the final part.
A: Lower the flushing pressure significantly. Thin sheets do not require aggressive fluid force to clear debris. High pressure will physically push the wire out of alignment. Maintain a steady, low-pressure flow and ensure proper wire tension.
A: Inspect nozzles daily for damage, wear, or misalignment. Clean them thoroughly during routine maintenance. Replace nozzles immediately if the orifice becomes deformed or if the fluid stream is no longer perfectly coaxial with the wire.
A: Pulse off-time dictates the duration between sparks. Increasing the off-time gives the dielectric fluid more time to flush debris out of the kerf before the next spark occurs. This is crucial when cutting deep or complex geometries.
A: Wire deflection usually results from flushing pressure that is too high for the current wire tension. It can also occur if the upper and lower nozzle pressures are severely unbalanced. Check tension settings and calibrate fluid flow rates.
