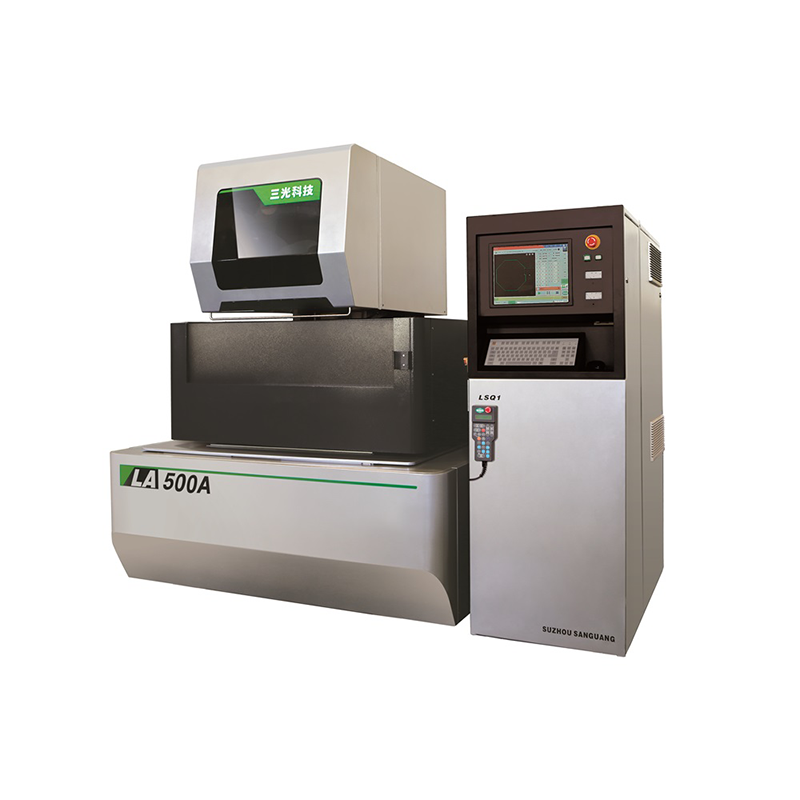

| MODEL | UNIT | LA500A |
| Max.workpiece dimension | mm | 900 x 650 |
| Worktable size | mm | 640 x400 |
| Machine dimensions | mm | 1450x1450x2080 |
| Controller size | mm | 1330x620 x1770 |
| Water tank size | mm | 1500x800 x1350 |
| Auxiliary Water-tank | mm | 710x335 x875 |
| Max.weight of workpiece | kg | 350/170(Submerge) |
| Machine body | Net/ Gross kg | 2000/2300 |
| Water tank | Net/ Gross kg | 450/800 |
| Controller | Net/ Gross kg | 620/760 |
| XYZ stroke | mm | 350x250 x220 |
| UV stroke | mm | 70 x70 |
| Max.taper angle | mm | ±15°/100mm |
| Max.workpiece thickness | mm | 210/130 (Submerge) |
| Full-closed loop | standard | |
| Corner control | standard | |
| Parameter library | standard | |
| Machining method | flushing /Submerge | |
| Max.machining current | A | 25 |
| Wire diameter range | mm | Φ0.15-0.3 |
| Wire feed rate | m/min | 1.8-12 |
| Weight of coil | kg | 5 |
| Wire tension | kgf | 0.2-2.0 |
| Capacity | L | 500+300 |
| Deionizer | lon-exchange resin | |
| Filtering method | Removable Paper filter | |
| Filter quantity | PC | 4 |
Machine get high rigid by long-time of experience machine design, 3D model design , finite element force analysis and fully practice
The perfect structure is the base of high precision machining. The box-type machine body, excellent casting of large thickness, reinforced frame of optimized distribution improve the machine integral rigid
Position the cross worktable under the work piece, high precision ball-screw, guideway and liner-sclare make it possible to closing the machining workpiece, which will help to improve the machine positioning accuracy and elimination of backlash
Position tapper structure above the high-rigid column, bottom arm with strengthened , which ensure the machining accuracy as high pressure flushing machining
Equip with imported high precision linear scale from Europe to measure the real movement of guide way slider and backlash that from the machine movement ,worn and expansion will be amended by system.
Using marble and ceramic that has insulation, abrasion resistance, rigidity and stability to low the influence as machine environmental temperature variation.
We earnestly carry out every aspect of the machine details. Most of machine casting is machining by 5 axis- center and every key parts are checked by CMM.
How does LA machine work? It's easy, just click monitor then you can use abundant machining library. The most important is ,it works smartly and fast.
High height and high-straightness LSQ realizes machining high efficiency and high straightness (thickness=100mm, straightness=3um).
Intelligent function of wire broke proof and high efficiency power, which realize fasting and stable machining. The fastest cutting speed up to 160mm2/min. Roughness hit Ra<0.9um(2cuts).
Corner Control
Abundant and intelligent corner cutting control solution to the all kind of corner condition, machining with optimal control automatically and power, which can get high precision of the corner.
High Roundness Developed New Servo control system, accurate and smooth axis control achieve a minimum gap while X,Y quadrant changing.
Without human intervention, achieved threadingwire quickly, you havemore time to do something else important.
Easy to use even for a beginner
To exchange date from the couple of the workshop is very simple and quick through standard interface port (LAN USB)
Removable plate of the water sink
The left plate of water sink can be removable, which clamp workpiece easy and convenient, further more the size of workpiece more than water sink also can be set.
Windows system, touching screen, convenient and efficient menu, easy to operate, easy to lear.
High-performance and panel and showing machine mechanical coordinate, which makes operator great facility.
High brightness LED flashlight, which enable operator can see the details of workpiece.
Compact structure, small footprint
The machine space plays a very important role in actual application.LA machine try to low the machine space as one of the objectives
