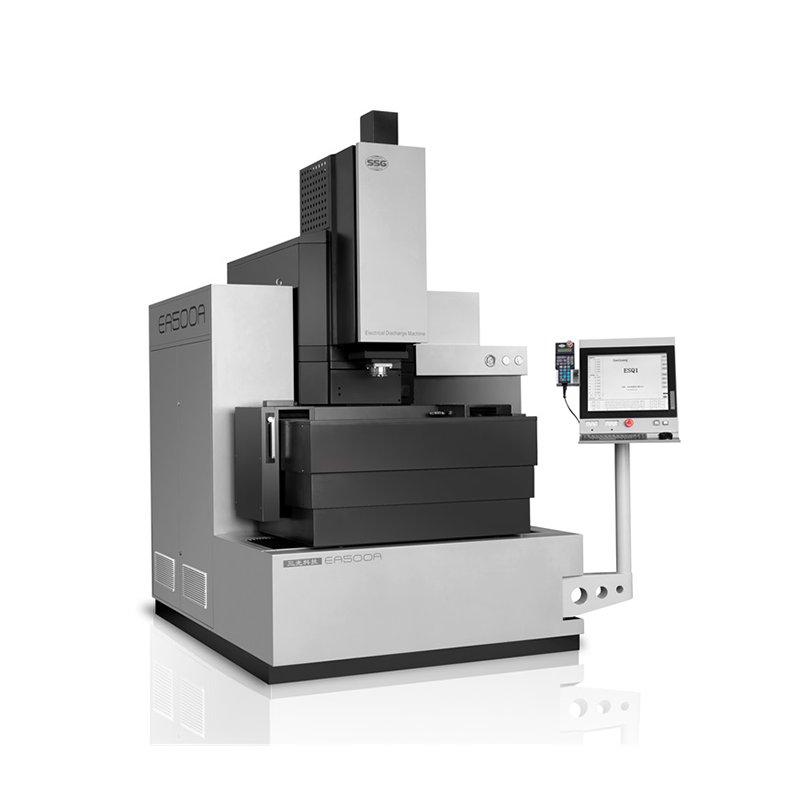

| Model | EA500A |

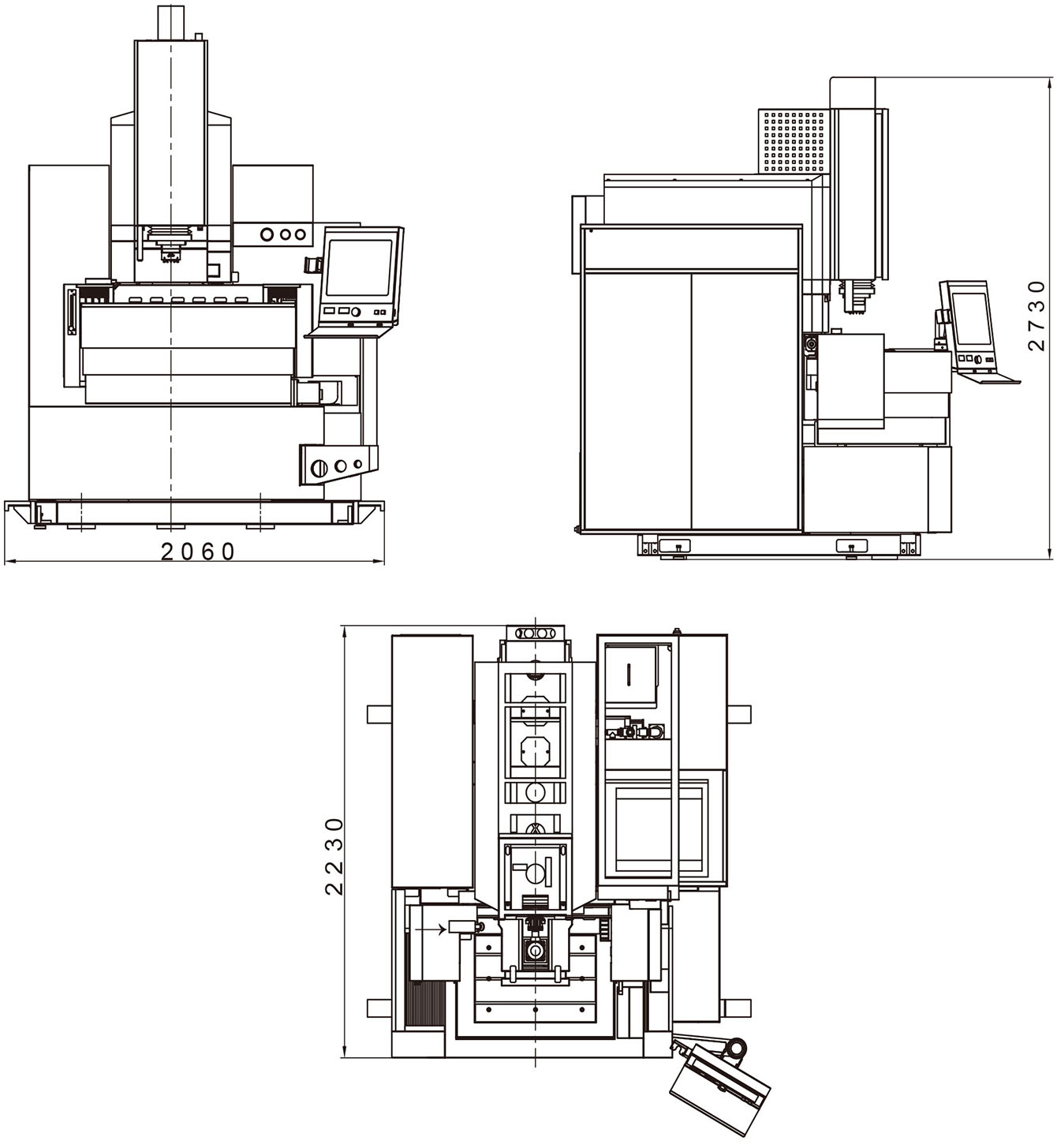

| Machine dimension (L*W*H) | 2060*2220*2730mm |
| Machine weight | 3500/4300kg |
| Stroke(X*Y*Z) | 500*300*320mm |
| Water-tank dimension (L*W*H) | 870*630*320mm |
| Max. fluid level | 265mm |
| Worktable Size(L*W) | 650*450mm |
| Distance between electrode to table top | 280-600mm |
| Max.electrode | 50kg |
| Max. workpiece weight | 800kg |
| Air pressure | 0.65MPa |
| Air flow | 100NL/min |
| capacity | 360L |
| Filter method | Repaceable filter |
| Filters Quantity | 2 pcs |
| CNC power supply（ESQ1) | |
| Power supply | |
| Power requirement | 3PH 380V+10% 50+1HZ |
| Power supply capacity | 11KVA |
| Machining Power Supply | |
| Max. machining current | 50A |
| NC unit | LC 1 |
| Operation System | Windows |
| Display | 19inch Touch Screen |
| Input | Monitor、Keyboard、USB |
| Controll Srokes | 6 axes |
| Max. speed of AJC | 5m/min |
| Option Spare Parts | |
| Z motor | Linear Motor |
| Rotation axes | C/R Stroke |
Compact all-in-one machine structure
Full closed-loop main shaft
Three-sided opening automatic lifting
Oil tank processing fluid automatic temperature stabilization system
Superior Performance
1. Innovative all-in-one machine design with small footprint, X/Y axis independent structure: It brings extremely high mechanical accuracy and the best operation experience. 2. Complete set of Japanese THK guide rails and lead screws, combined with imported absolute type AC servo motors to achieve full closed-loop numerical control, with numerical control accuracy of 0.1um. Automatic lifting oil tank, adopts three-sided opening method. 3. Meeting your imagination of space and operation convenience.
4. Automatic temperature control of processing liquid to meet the needs of high-precision product processing. 5. Rich shaking functions, capable of performing high-precision multi-axis linkage three-dimensional processing to significantly expand processing methods.
6. Friendly human-machine interface, excellent intelligent expert system, convenient operation mode helps you quickly get started.

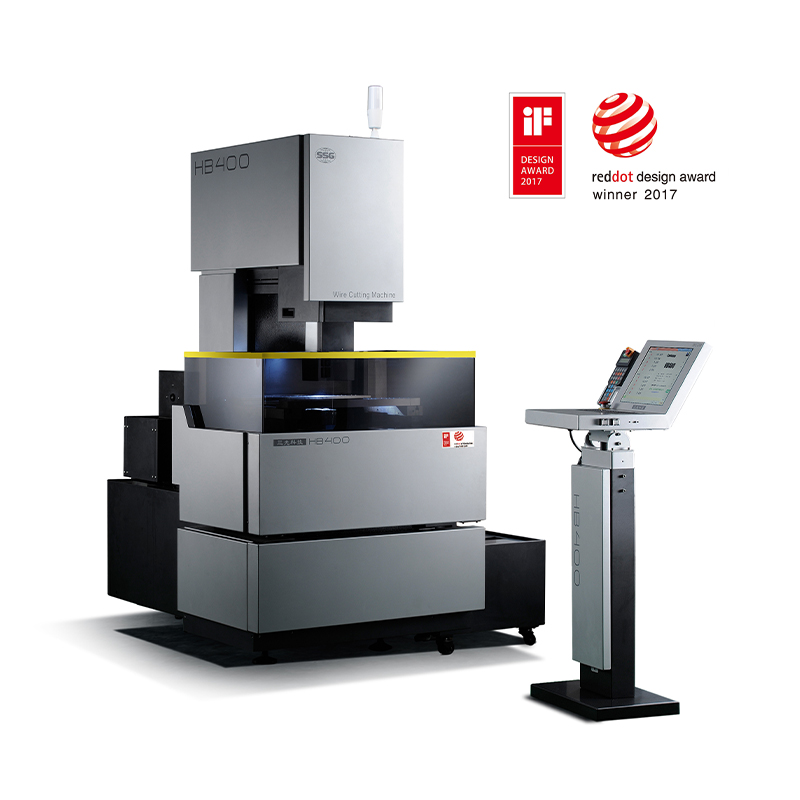

HB400

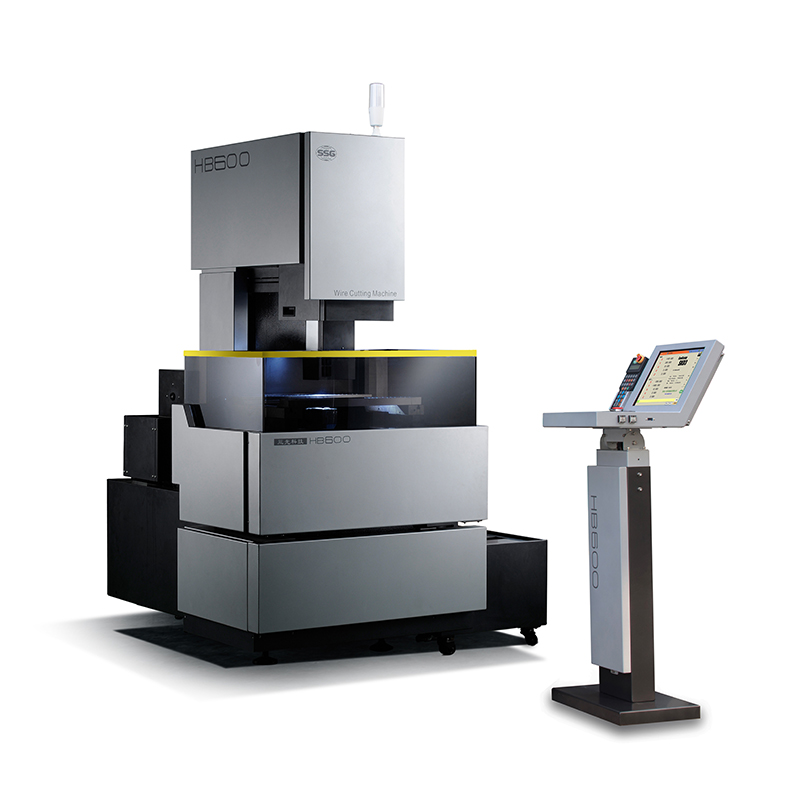

HB600

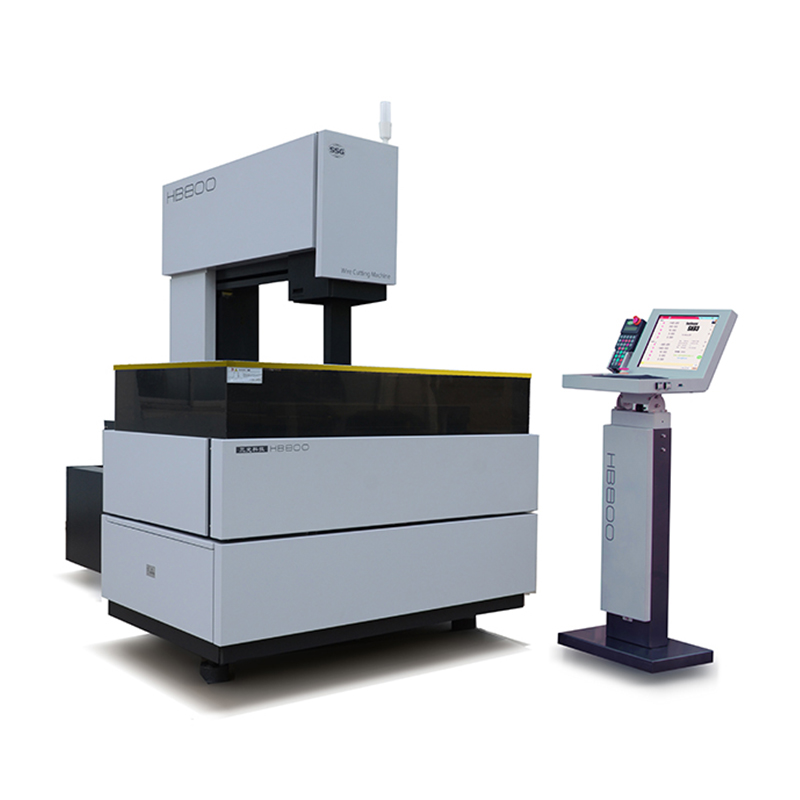

HB800

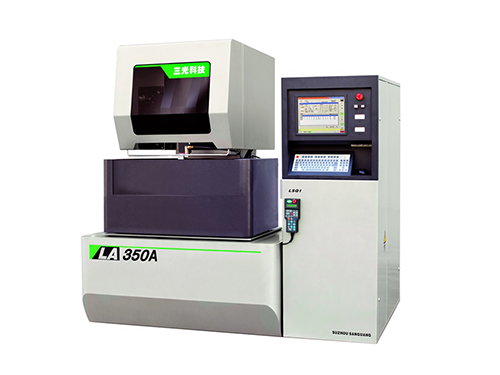

LA350A

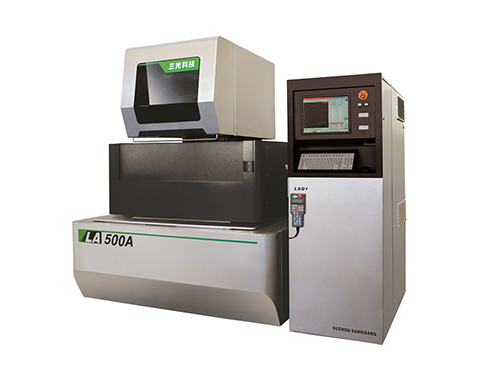

LA500A

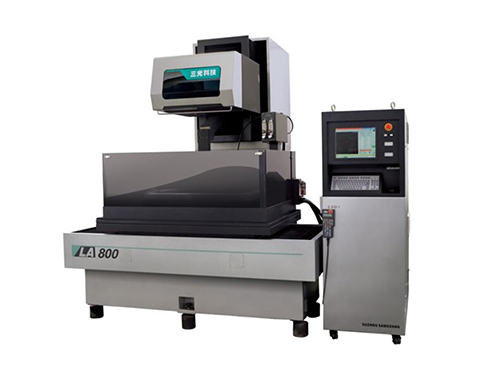

LA800

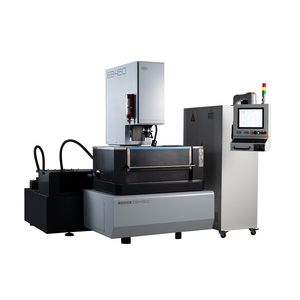

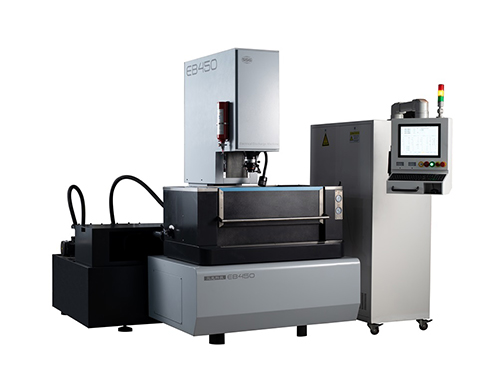

EB450
EA500A

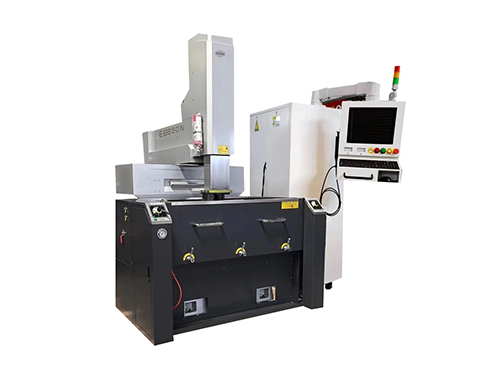

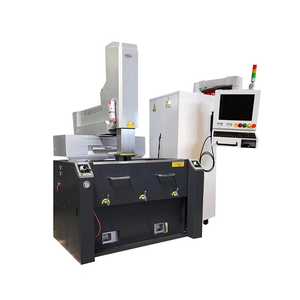

EB650N

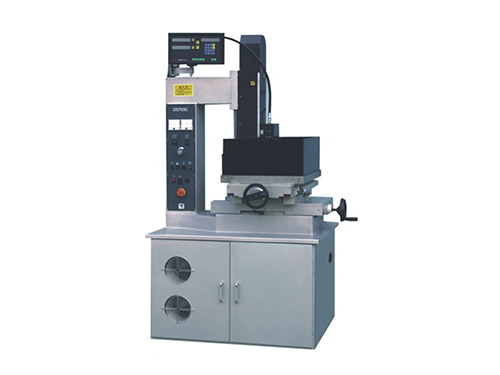

DS703C

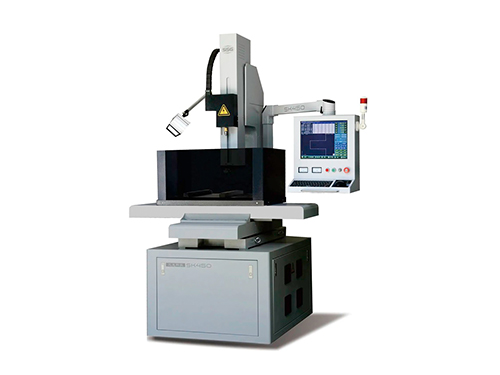

SK450
