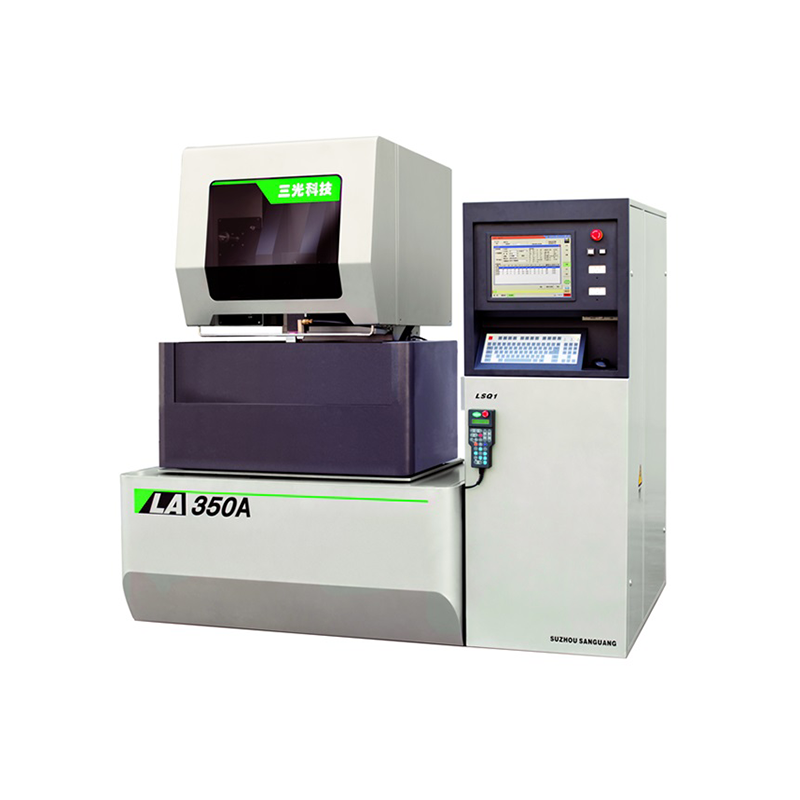

How to Choose a Brass Wire EDM Machine for Precision Metal Cutting

The manufacturing demand for zero-tolerance machining requires equipment capable of extreme precision. Mating components must fit together with virtually no gap. This reality pushes machine shops toward advanced electrical discharge machining. Selecting the right equipment involves balancing upfront capital expenditure against strict operational variables. Shop managers must carefully evaluate cutting speed, surface finish requirements, and consumable usage rates. Misjudging machine specifications leads to excessive wire consumption. It also causes frequent wire breakage and unacceptable production downtime on the shop floor. This guide provides a technical evaluation framework for assessing machine capabilities. We compare structural configurations and analyze generator technologies. You will learn how to calculate the true operational realities of integrating a new machine into your production environment. We focus on practical metrics that impact daily operations, from threading reliability to thermal stability.

Key Takeaways

• Wire Compatibility is Baseline: While 0.010-inch plain brass wire handles roughly 80% of standard EDM work, the chosen machine must feature programmable tension control to accommodate hard, half-hard, and soft wire states.

• Automation Dictates Throughput: An automatic threading EDM system is non-negotiable for shops targeting lights-out manufacturing or handling multi-cavity workpieces.

• Precision Requires Thermal Stability: Achieving advertised tolerances (e.g., ±0.006 mm) requires a submerged cutting environment and strict facility temperature controls, not just high-end machine electronics.

• Long-term ROI depends heavily on dielectric fluid maintenance, filtration efficiency, and the machine's wire feed rate optimization.

Defining Success Criteria for a CNC Wire EDM

Production Volume vs. Prototyping

Shop managers must first establish the primary operational role of the equipment. High-mix, low-volume aerospace prototyping requires different machine features than continuous stamping die production. Prototyping demands rapid setup changes, versatile workholding solutions, and easy access to the work zone. Continuous production prioritizes automated wire threading and massive wire spool capacity. A 35-pound wire spool allows for roughly 40 hours of continuous cutting at standard feed rates, whereas a standard 10-pound spool requires frequent operator intervention. Understanding your production volume dictates the level of automation required. It also influences the size of the dielectric fluid tank you need. Machines dedicated to long, unattended runs require robust filtration systems. They must handle high volumes of microscopic metal debris without clogging the paper filters or degrading the deionization resin prematurely.

Material Conductivity as a Hard Constraint

Electrical discharge machining relies entirely on electrical conductivity. You must verify that all target materials are electrically conductive. The process excels at cutting hardened D2 tool steel, Inconel, titanium alloys, and tungsten carbide. The physical hardness of the workpiece does not affect the cutting speed. The melting point and electrical conductivity determine the material removal rate. However, the process cannot machine non-conductive ceramics, polymers, or fiberglass composite materials. If your shop processes mixed-material assemblies, you must disassemble them before machining. The electrical spark simply will not jump to a non-conductive surface, which will immediately halt the cutting cycle and trigger a machine error.

Kerf Width and Internal Radii Limitations

The wire diameter strictly dictates your minimum internal corner radius. Standard operations rely heavily on 0.010-inch diameter wire. You must calculate the internal radius by adding the wire radius to the spark gap overcut. A 0.010-inch wire typically produces a minimum internal radius of roughly 0.006 to 0.007 inches. The kerf width also limits how closely you can nest parts in a single block of material. Thicker materials require a larger spark gap to flush debris effectively. This slightly increases the effective kerf width at the center of the cut, creating a microscopic barrel shape if not compensated for properly. You must account for this overcut when programming tight-tolerance mating components in your CAM software.

Tolerance and Surface Finish Baselines

Define your acceptable Roughness Average (Ra) values before evaluating generator technologies. You must also establish strict dimensional accuracy requirements. Standard machining might require tolerances of ±0.001 inches. Zero-tolerance aerospace or medical components often demand ±0.0002 inches. Achieving a mirror-like surface finish requires multiple skim passes. A standard high-precision cut involves one aggressive roughing pass followed by three to four low-power skim passes. Each skim pass removes a microscopic layer of material. It also reduces the recast layer left by the initial roughing cut. Your chosen CNC wire EDM must possess a generator capable of ultra-fine spark control to achieve low Ra values without inducing micro-cracking in the workpiece surface.

Core Evaluation Dimensions: Machine Specifications

Generator and Power Supply Technology

The spark generator serves as the heart of the machining process. You must evaluate its ability to control pulse duration and peak current. Modern generators utilize adaptive control algorithms. These algorithms monitor spark gap conditions in real-time. They adjust the power output to prevent wire breakage when encountering poor flushing conditions or sudden changes in material thickness. This dynamic control is essential for cutting stepped or irregular workpieces where fluid pressure fluctuates rapidly.

Anti-electrolysis technology is another critical feature to evaluate. Standard DC generators can cause oxidation and pitting on titanium and aluminum workpieces. This electrochemical damage compromises the structural integrity of aerospace components, often leaving a destructive blue oxidation layer. Advanced AC generators or specialized anti-electrolysis circuits prevent this degradation. They maintain the pristine surface chemistry of the machined part. You must also analyze how the power supply optimizes performance when using standard wire. Efficient power delivery maximizes cutting speed while minimizing wire degradation and flaking.

Wire Drive and Tension Systems

The mechanics of wire feeding directly impact part accuracy and machine uptime. The system must handle the standard wire flawlessly. It guides the wire from the supply spool, through the tension brake wheel, past the upper guide, through the workpiece, into the lower guide, and finally through the pinch rollers into the disposal bin. Any hesitation or slipping in the drive rollers causes microscopic wire vibrations. These vibrations translate directly into poor surface finish, vertical striations on the part, and dimensional inaccuracies.

Closed-loop tension control is an absolute requirement for precision work. The machine must maintain exact wire tension regardless of spool weight or cutting conditions. This prevents wire deflection during high-pressure flushing. It is particularly critical during high-taper cutting operations where the wire experiences severe mechanical stress. The tension system must also adapt when transitioning between different wire tensile strengths. A reliable automatic threading EDM feature depends entirely on precise tension control. You must evaluate the success rate of the threading system. Test its ability to thread submerged versus non-submerged. Also, verify its capability to thread directly at the break point within a narrow kerf, which saves hours of manual recovery time.

Structural Integrity and Axis Travel

Machine rigidity dictates the ultimate accuracy of the finished part. You must compare cast iron machine beds to polymer concrete alternatives. Cast iron offers excellent rigidity and proven long-term stability. Polymer concrete provides superior vibration dampening and exceptional thermal mass. High thermal mass resists rapid temperature fluctuations in the shop environment. This stability keeps the axis alignments true during long cutting cycles that span multiple days.

You must size the X, Y, Z, U, and V axis travels against your maximum workpiece dimensions. Ensure the machine can accommodate your largest parts with adequate clearance for workholding fixtures. The U and V axes control the upper guide position relative to the lower guide. This independent movement enables complex taper cutting. Evaluate the maximum taper angle the machine can achieve at a specific Z-axis height, as steep tapers require specialized soft wire and modified flush cups.

To verify precision, utilize standardized multi-axis benchmarks. The octagon cutting test is the industry standard for this validation. It forces the machine to interpolate multiple axes simultaneously. The test verifies the machine's ability to hold ±0.006 mm precision across all directional transitions. Passing this benchmark ensures the machine can produce perfectly fitting complex mating components.

Solution Categories: Submerged vs. Flushing Configurations

Submerged Wire Cutting Configurations

In a submerged setup, the entire workpiece sits inside a tank of dielectric fluid. This fluid is typically deionized water. The machine automatically fills the tank before the cutting cycle begins. The water level remains above the upper flush cup throughout the operation. This configuration represents the industry standard for high-precision manufacturing and thick-plate machining.

The submerged environment provides superior thermal stability. The massive volume of water absorbs the intense heat generated by the electrical sparks. This prevents the workpiece from expanding during the cut. Submersion also reduces wire breakage by maintaining a consistent temperature along the entire wire length. It offers better flushing of microscopic debris from deep or blind cuts. You must use a submerged wire cutting EDM machine to achieve tolerances of ±0.006 mm consistently across large blocks of steel.

However, submerged systems come with specific operational realities. They carry a higher initial equipment cost due to the complex tank and seal mechanisms. Tank fill and drain times add to the overall cycle time, which impacts high-volume production schedules. The pneumatic seals on the tank doors require routine inspection and periodic replacement to prevent shop floor leaks.

Coaxial Flushing Systems

Coaxial flushing systems do not submerge the workpiece. Instead, they utilize high-pressure upper and lower nozzles. These nozzles direct a concentrated stream of dielectric fluid directly into the kerf. The fluid flushes away the vaporized metal and cools the immediate cutting zone. The rest of the workpiece remains exposed to the ambient air in the shop.

These systems offer faster setup times because there is no tank to fill or drain. Operators can easily inspect the cutting progress visually without draining a tank or interrupting the cycle. This makes coaxial flushing suitable for simpler, lower-tolerance applications or thin-plate stamping dies.

The primary limitation is inferior thermal control. The ambient air temperature can cause the workpiece to expand or contract during long cuts. Coaxial flushing also struggles with exceptionally thick workpieces. The fluid pressure dissipates deep within the kerf, leaving debris behind. This trapped debris causes secondary sparking, which degrades the surface finish. The high-pressure nozzles also increase the risk of wire deflection, which compromises dimensional accuracy on tall parts.

Features-to-Outcomes: Wire Types and Machine Adaptability

Optimizing for Plain Brass Wire

Plain brass remains the prevalent choice for the vast majority of operations. It offers an optimal balance of high electrical conductivity and reliable tensile strength. The zinc content in the brass vaporizes during the cut. This vaporization helps flush debris and cools the cutting zone. You must match your machine parameters to the specific tensile state of the wire being used to prevent snapping.

Hard brass wire is ideal for straight cuts and standard profiles. Its high tensile strength resists deflection under high-pressure flushing. It also provides the most reliable auto-threading performance because it stays perfectly straight when cut by the chopper. Half-hard wire serves as the versatile middle ground. It handles general precision metal cutting well and allows for moderate taper angles. Soft brass wire is strictly necessary for steep taper angles. The wire must bend sharply at the upper and lower guides without snapping. A dedicated brass wire EDM must feature programmable tension settings to handle all three states without causing breaks during complex toolpath execution.

Upgrading to Coated Wires for Hardened Steel

Sometimes production demands exceed the capabilities of plain brass. You must evaluate if the machine's generator can be optimized for coated wires. Zinc-coated or diffusion-annealed wires offer significantly higher cutting speeds. The specialized coating vaporizes rapidly, creating a larger spark gap. This allows for more aggressive flushing and faster material removal on tall workpieces.

Coated wires cut hardened steel much faster than plain brass. They also experience less frequent wire breakage during aggressive roughing passes. However, you must carefully balance this speed against operational realities. Coated wires consume faster and leave different debris profiles in the dielectric fluid. Your machine's wire drive system must be robust enough to handle the slightly different surface texture of coated wires without slipping on the pinch rollers or clogging the lower guide with flaked zinc.

Overall Value Influencing Factors

Consumables and Maintenance Realities

Integrating a brass wire EDM machine requires strict consumable management. You must calculate hourly wire consumption rates based on your standard spool size and average feed speed. High-speed roughing passes consume wire rapidly to prevent breakage. Skim passes consume wire much slower. Understanding this ratio helps you manage inventory and plan for unattended running hours over the weekend.

Dielectric fluid maintenance is equally critical. You must track the lifespan of your deionization resin. As the resin degrades, the water's conductivity increases. This leads to stray sparks, poor surface finish, and accelerated rusting of the workpiece. Paper filters also require regular replacement. Clogged filters reduce flushing pressure and allow microscopic debris to circulate back into the cutting zone. You must also schedule routine maintenance for the power feed contacts. These carbide or tungsten contacts wear down over time, reducing electrical transfer efficiency. The lower head assembly and wire chopper also require regular cleaning to prevent mechanical jams.

Energy Consumption and Footprint

These machines draw significant electrical power during operation. You must assess the peak power draw of the spark generator. The chiller unit, which maintains the dielectric fluid temperature, runs continuously and consumes substantial energy. The high-pressure dielectric pumps also add to the overall electrical load. Ensure your facility's electrical infrastructure can support these continuous draws without voltage drops, which will reset the machine control mid-cut.

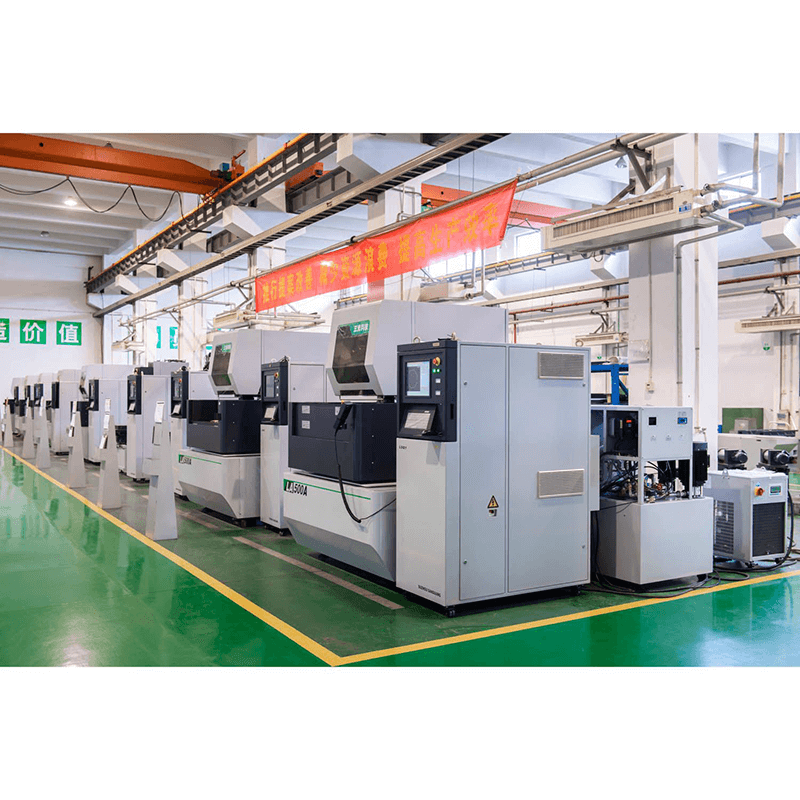

Evaluate the required floor space carefully. The machine footprint extends beyond the casting itself. You must include clearance for the dielectric fluid reservoir and the chiller unit. Operators need unobstructed access to the rear of the machine for routine maintenance. You must also allocate space for heavy wire spool changes and filter replacements. Cramped installations lead to neglected maintenance and eventual machine failure.

Implementation Risks and Mitigation Strategies

Facility Environmental Controls

The most significant risk to precision machining is ambient temperature fluctuation. Thermal expansion in the machine casting destroys tight tolerances. A temperature shift of just a few degrees can cause the casting to move several microns. This movement shifts the wire position relative to the workpiece, ruining the cut and scrapping expensive material.

You must mitigate this risk through strict environmental controls. Install the precision metal cutting machine in an isolated, climate-controlled room. The HVAC system must maintain a temperature stability of ±1°C twenty-four hours a day. Do not place the machine near loading dock doors, exterior windows, or heat-generating equipment. Consistent ambient temperature is the only way to guarantee the machine's geometric accuracy over long cutting cycles.

Operator Training and CAM Integration

Underutilizing machine capabilities is a common operational failure. Poor CNC programming or improper offset calculations lead to scrapped parts. Modern generators require specific cutting strategies to achieve optimal surface finishes. Relying on outdated programming methods negates the advantages of advanced machine electronics.

Mitigate this by ensuring the machine control is fully compatible with your existing CAM software. Budget for OEM-led operator training during the installation phase. Operators must understand how to manipulate generator settings for different material thicknesses. They must also learn advanced cutting strategies, such as slug retention techniques and proper skim pass sequencing. Proper training ensures you extract maximum performance from the equipment immediately.

Conclusion

1. Request a standardized test cut from shortlisted OEMs using your specific workpiece material and CAD data.

2. Require a detailed time study to verify the actual cutting speed against advertised claims.

3. Demand an octagon cutting precision validation to prove the machine's multi-axis interpolation accuracy.

4. Request a comprehensive consumable usage breakdown for the test cut to validate your operational models.

5. Verify the exact floor space and electrical requirements before finalizing the equipment layout.

FAQ

Q: What materials can a brass wire EDM machine cut?

A: It cuts any electrically conductive metal, including hardened tool steel, titanium, aluminum, brass, and tungsten carbide. The physical hardness of the workpiece does not impact the cutting process. However, it cannot machine non-conductive materials like plastics, ceramics, or fiberglass composites.

Q: Why is plain brass wire used in 80% of EDM work?

A: Brass wire offers an optimal balance of high electrical conductivity, adequate tensile strength, and reliable flushing characteristics. The zinc content vaporizes to aid cutting and flush debris, making it the most practical choice for standard precision metal cutting.

Q: What is the difference between a wire cutting EDM machine and a sinker EDM?

A: A wire EDM uses a continuously spooling thin wire to cut entirely through a workpiece, functioning much like a highly precise bandsaw. A sinker EDM uses a custom-machined solid electrode to burn a specific 3D blind cavity into the metal.

Q: How accurate is a CNC wire EDM?

A: Modern machines operating in strictly climate-controlled environments can achieve cutting precision and positional accuracies of ±0.006 mm or tighter. This extreme accuracy enables zero-tolerance machining for perfectly mating components.

Q: Is an automatic threading EDM feature worth the extra cost?

A: Yes, for most production environments. It drastically reduces manual operator intervention, allows for continuous machining of multi-cavity parts, and enables unattended lights-out manufacturing. This significantly improves overall production throughput.

Q: Can I use coated wire in a standard brass wire EDM?

A: Most modern machines can run coated wires, such as zinc-coated brass, to increase cutting speeds in hardened materials. However, the machine's generator settings and wire drive tension system must be adjusted specifically for the coated wire type.
