Which Workpiece Heights Suit Molybdenum Wire EDM?

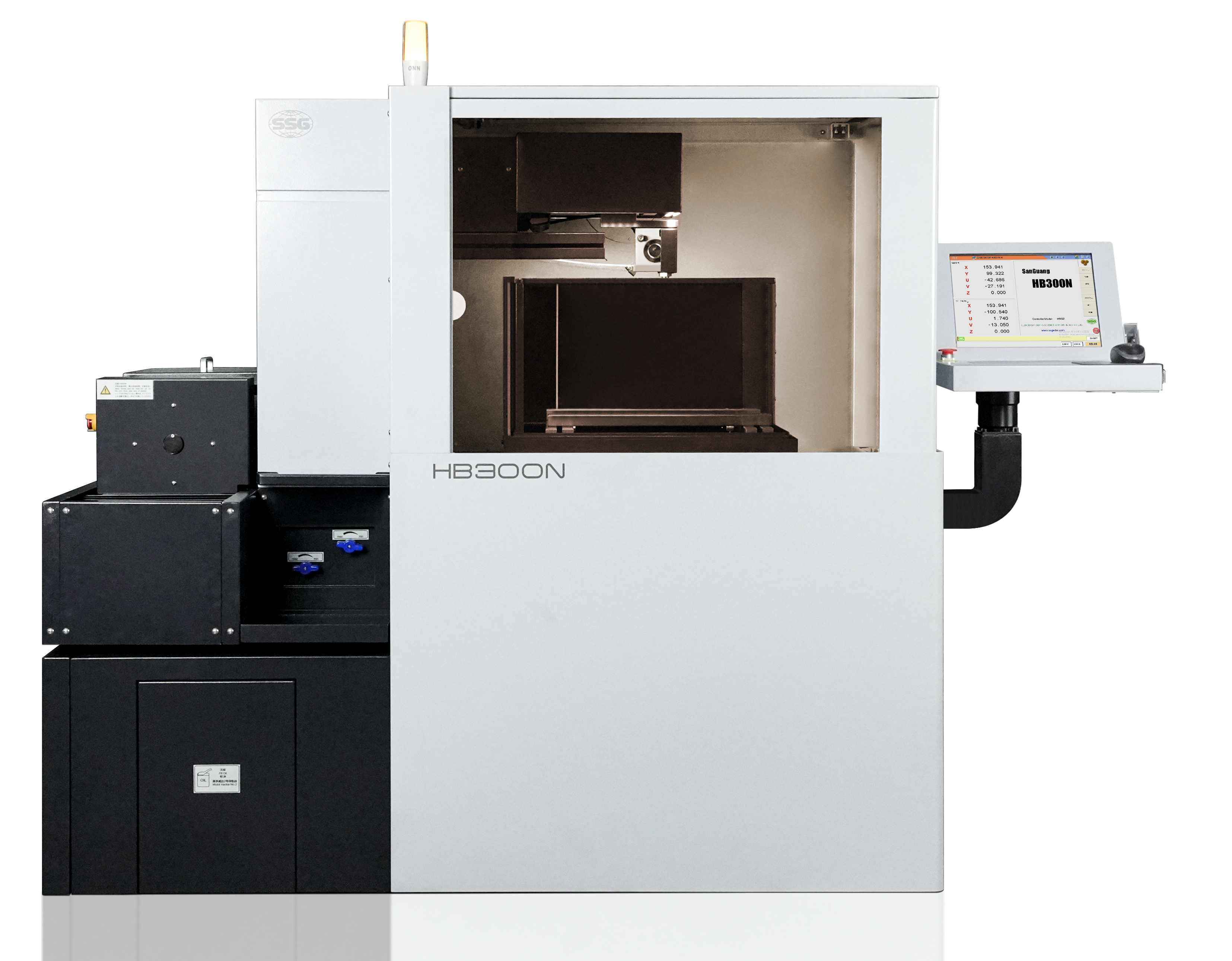

Machining exceptionally tall or dense workpieces frequently pushes standard brass wire EDM equipment past its physical limits, resulting in frequent wire breakage, poor flushing, and severe wire deflection. As Z-axis height increases, maintaining consistent wire tension and managing spark gap debris becomes exponentially more difficult. Shops face diminishing returns on cycle times and consumable costs when forcing standard machines to process oversized blocks. Determining whether to integrate a CNC Molybdenum Wire EDM Machine requires a strict evaluation of workpiece height thresholds, material hardness, and acceptable surface finish tolerances. This guide outlines the exact height parameters and operational trade-offs where molybdenum wire outperforms traditional alternatives. We will examine the mechanical realities of deep cuts and the specific material conditions that dictate equipment selection on the shop floor.

• Molybdenum wire possesses nearly double the tensile strength of standard brass and up to three times higher thermal resistance, allowing it to maintain critical tension in workpieces exceeding 4 to 10 inches in height without snapping.

• The high heat resistance of molybdenum enables reusable wire configurations (closed-loop reciprocating systems), drastically reducing consumable costs and cycle times in high-volume or deep-cut applications.

• Cutting exotic refractory metals (such as Moly-461) at extreme heights presents unique spark dynamics, requiring specific steel-technology power profiles and modified flush settings.

• Proper U and V axis vertical alignment, using physical calibration blocks or spark-referencing, is critical for mitigating wire deflection when cutting at extreme Z-axis heights on a High Efficiency Wire EDM Machine.

1. The Mechanics of Z-Axis Machining in a Molybdenum Wire EDM Machine

Defining the Height Challenge in Wire EDM

Wire deflection creates a physical belly effect during cutting operations. As the distance between the upper and lower guides increases, the wire naturally bows in the middle. This bowing compromises dimensional accuracy on tall parts, leaving a barrel shape on the finished workpiece. Poor dielectric flushing in deep cuts exacerbates the problem significantly. Inadequate flushing traps eroded particles inside the kerf. This trapped debris leads to secondary sparking and localized heat concentration. Eventually, the heat causes catastrophic wire breaks. Operators running standard brass setups often find themselves reducing feed rates to a crawl just to keep the wire intact.

When you push a cut past the four-inch mark, the fluid dynamics inside the kerf change. The dielectric fluid struggles to penetrate the center of the cut. Without fresh fluid, the spark gap becomes contaminated with conductive debris. This contamination alters the electrical resistance of the gap, causing the generator to fire erratically. The resulting unstable sparks pit the workpiece surface and degrade the wire. A Molybdenum Wire EDM Machine addresses these mechanical and electrical shortcomings through superior material properties and specialized fluid delivery systems.

1. Identify the maximum Z-axis travel required for your typical production run.

2. Measure the actual wire deflection at the center point of your tallest test block.

3. Evaluate the flushing pressure at the upper and lower nozzles during a deep cut.

4. Record the frequency of wire breaks per inch of Z-axis height.

Tensile Strength and Tension Maintenance

Molybdenum wire offers a tensile strength ranging from 1300 to 1900 N/mm². Standard brass wire typically maxes out between 400 and 900 N/mm². This massive difference dictates performance on tall workpieces. Higher tensile strength allows the machine to apply greater mechanical tension. This tension resists the electrostatic and electrodynamic forces generated during the cut. High tension keeps the wire straight, preventing bowing in parts that exceed standard heights. When you apply high tension to brass, it stretches and snaps. Molybdenum holds its shape.

Maintaining tension over a long vertical span requires robust hardware. The wire guides must handle the increased lateral load without wearing prematurely. The tensioning motors must provide consistent pull, even as the wire heats up and expands slightly. Molybdenum's structural stability under tension means the machine can maintain a tighter spark gap. A tighter gap improves cutting speed and dimensional accuracy. You spend less time skimming the part to remove the barrel effect caused by wire deflection.

Thermal Durability and Heat Resistance in Prolonged Cuts

Molybdenum boasts a melting point of 2,623°C. This is roughly three times higher than the melting point of brass. The wire withstands prolonged thermal loading without losing structural integrity. This thermal resistance translates directly to quicker cutting cycles. Operators can push higher feed rates even under extreme flushing limitations. The wire survives the concentrated heat of deep Z-axis cuts without snapping. When brass wire encounters a hot spot caused by poor flushing, it melts and breaks instantly.

The thermal durability of molybdenum also allows for different generator settings. You can use longer pulse on-times and higher peak currents. These aggressive settings remove material faster. In a deep cut, where flushing is poor, the ability to blast through the material without breaking the wire is a massive advantage. The wire acts as a heat sink, carrying thermal energy away from the cutting zone. This prevents the workpiece from warping due to localized heat buildup.

2. Optimal Workpiece Height Ranges for Molybdenum Wire EDM

Standard Operations (0–4 Inches): Speed and Consumable Efficiency

Brass wire historically dominates the 0 to 4-inch height range. However, molybdenum setups offer distinct operational advantages here. Fast-wire configurations use a reciprocating drum to reuse the wire. This reusability slashes consumable usage significantly. The trade-off involves surface finish. Achieving a fine Ra may require additional skimming passes. Premium coated brass wires in slow-wire setups typically achieve finer finishes in a single pass. If your shop prioritizes roughing speed over a mirror finish, molybdenum remains highly competitive even on short parts.

In this height range, the flushing dynamics are relatively simple. The upper and lower nozzles easily force dielectric fluid through the kerf. Wire deflection is minimal, regardless of the wire type. The primary advantage of a Molybdenum Wire EDM here is the closed-loop wire system. You load a spool, and it runs back and forth for hours. You eliminate the constant spooling and disposal of brass wire. This reduces operator intervention and lowers the cost per part on high-volume runs.

Mid-Range Heights (4–10 Inches): The Deflection Threshold

Standard brass wire often fails in the 4 to 10-inch range. Cutting hard materials like tool steels, Inconel, or titanium alloys exposes brass wire limitations. Molybdenum maintains geometric accuracy across these mid-range heights. It resists the bowing effect and minimizes taper. Synchronized high-pressure flushing becomes mandatory at this depth. Proper flushing maintains cutting stability and prevents debris accumulation. You must balance the flushing pressure to avoid pushing the wire out of alignment.

When cutting a 6-inch block of D2 tool steel, brass wire requires a very conservative feed rate. If you push it, the wire bows, and the center of the cut lags behind the top and bottom. This creates a massive error in straightness. Molybdenum's high tensile strength allows you to maintain a straight vertical line. You can increase the tension and the feed rate simultaneously. The resulting part requires less bench work and fewer skimming passes to meet tolerance specifications.

• Inspect the upper and lower flush cups for wear before starting a mid-range cut.

• Adjust the flushing pressure to ensure fluid exits both the top and bottom of the kerf evenly.

• Increase wire tension by 10-15% compared to standard 2-inch cuts.

• Monitor the spark gap voltage for fluctuations indicating poor debris removal.

• Implement a multi-pass strategy if the final tolerance is tighter than 0.0005 inches.

Extreme Heights (10+ Inches): High Efficiency Wire EDM Machine Capabilities

Specialized large-capacity machines handle aerospace components and large forging dies. These applications require cutting heights exceeding 10 inches. A High Efficiency Wire EDM Machine uses high-velocity wire travel. Wire speeds often reach 10 to 12 meters per second. This speed physically carries dielectric fluid into deep crevices. It also evacuates eroded particles efficiently. Operators must manage physical wire taper and spark-gap growth to maintain vertical straightness.

At 15 inches of Z-axis height, flushing from the nozzles is almost useless at the center of the cut. The wire itself becomes the primary mechanism for fluid delivery. The high-speed reciprocating action drags the water-based emulsion into the kerf. This cools the cutting zone and flushes the microscopic debris. Without this high-speed action, the cut would stall completely. Molybdenum is the only wire material that can survive this violent, high-speed reciprocating motion while maintaining the necessary tension for a straight cut.

3. Material Hardness and Composition Intersecting with Workpiece Height

Machining Refractory Metals and Carbides at Height

Cutting hard materials at heights of 4 inches or greater presents severe challenges. Tungsten carbide, hardened D2 tool steel, and titanium are notoriously difficult. High density combined with a tall Z-axis creates a hostile environment. Standard EDM wire degrades rapidly under these conditions. The thermal and tensile properties of molybdenum become necessary to sustain the cut. When you cut carbide, the spark energy required is immense. This energy degrades the wire quickly. Molybdenum resists this degradation, allowing you to complete the cut without constantly rethreading broken wire.

Machining molybdenum workpieces (like Moly-461) at extreme heights introduces a metallurgical dilemma. Standard brass wire fails because the workpiece has a massive melting point. The brass melts before the workpiece erodes efficiently. Equipment manufacturers recommend using adapted steel technology generator settings. Operators must modify discharge pulse durations and off-times. These adjustments prevent the wire from welding to the workpiece. You need short, high-intensity sparks with long off-times to allow the gap to clear and cool.

1. Select a water-based synthetic coolant designed specifically for carbide or refractory metals.

2. Reduce the pulse on-time to minimize thermal damage to the wire.

3. Increase the pulse off-time to allow for better debris clearance in the deep kerf.

4. Raise the peak current slightly to maintain cutting speed despite the longer off-time.

5. Monitor the wire guides for excessive wear caused by the high-tension requirements.

6. Perform a test cut on a scrap piece of the same material and height to verify settings.

Precision Wire Cutting EDM Trade-offs

Balancing cutting speed, material hardness, and wire wear requires precise parameter control. A dedicated Precision Wire Cutting EDM provides specific frameworks for these adjustments. You must tune pulse on-time, pulse off-time, peak current, and wire tension. Proper tuning prevents wire degradation when cutting tall, hard materials. If you set the on-time too high, the wire will snap, regardless of its tensile strength. If you set the off-time too high, the cut will take days to complete.

The trade-off always comes down to speed versus stability. On a 12-inch block of Inconel, stability is paramount. A broken wire at that depth is a nightmare to rethread. You sacrifice some cutting speed to ensure the wire survives the entire pass. Molybdenum gives you a wider operating window. You can push the parameters harder than you could with brass, but you still must respect the physics of the spark gap. The goal is a continuous, stable spark that erodes the material without overheating the wire.

4. Evaluating and Implementing a CNC Molybdenum Wire EDM Machine

Machine Compatibility and Hardware Adaptations

You cannot simply spool molybdenum wire into a standard slow-wire brass EDM machine. The hardware requirements differ fundamentally. Molybdenum systems utilize high-speed reciprocating wire drums. They require specialized V-guides or ruby guides instead of standard diamond guides. The tensioning mechanisms are entirely different. The power delivery systems and dielectric fluid requirements also diverge significantly from standard setups. Attempting to retrofit a brass machine for molybdenum is an exercise in frustration and wasted capital.

The reciprocating drum is the heart of the system. It spools the wire back and forth, reversing direction rapidly. This requires specialized motors and control software to prevent wire slack during the reversal. The guides must handle the abrasive nature of the wire moving at high speeds. Ruby or specialized ceramic guides offer the necessary wear resistance. The dielectric system must handle water-based emulsions, which require different pumps and filtration systems than the deionized water used in brass machines.

• Verify the facility has adequate floor space for the larger footprint of a reciprocating drum system.

• Ensure the power supply can handle the specific voltage and amperage requirements of the high-speed motors.

• Install appropriate ventilation to handle the mist generated by water-based emulsion dielectrics.

• Stock up on specialized ruby or ceramic V-guides compatible with molybdenum wire.

• Train maintenance staff on the specific lubrication and cleaning requirements of the reversing drum mechanism.

Success Criteria and Performance Baselines

Successful implementation relies on specific performance metrics. You should track the reduction in wire break downtime. Monitor the consumable spend per part. Measure the geometric tolerances achieved on tall parts. Baseline expectations for surface finish differ from brass systems. Single-pass high-speed molybdenum EDM typically leaves a rougher finish. Achieving fine finishes requires specific multi-pass technologies. You must set realistic expectations with your quality control department regarding the initial surface finish capabilities.

A successful transition means your operators spend less time fighting broken wires and more time setting up the next job. The geometric accuracy on tall parts should improve immediately. You should see a drastic reduction in the barrel effect on parts over 6 inches tall. If you are still seeing significant taper, you need to revisit your flushing strategies and wire tension settings. The machine is capable of high precision, but it requires the operator to understand the specific dynamics of high-speed molybdenum cutting.

Implementation Risks and Mitigation Strategies

Precise vertical alignment is critical before cutting tall parts. You must calibrate the U and V axes perfectly. Compounding angular errors ruin tall workpieces. Fast-wire machines use manual spark-alignment techniques or physical calibration blocks. Operator training is another vital mitigation strategy. Transitioning from brass requires adapting to new tensioning mechanisms. Operators must learn to manage reversing drums and water-based emulsion dielectrics. A poorly aligned wire will cut a scrap part, regardless of the wire material.

The spark-referencing method is the most reliable way to align the wire on a tall block. You bring the wire close to a precision square block and monitor the spark gap voltage. When the voltage is uniform across the entire height of the block, the wire is perfectly vertical. This process takes time, but it is absolutely necessary for deep cuts. Skipping this step guarantees a rejected part. Operators must also learn how to mix and maintain the water-based emulsion. Incorrect fluid concentration leads to poor flushing and premature wire wear.

1. Clean the worktable and the calibration block thoroughly before starting the alignment process.

2. Mount the calibration block securely to the table, ensuring it is perfectly flat.

3. Move the wire close to the block and initiate a low-power spark circuit.

4. Adjust the U and V axes until the spark is visually and electrically uniform from top to bottom.

5. Lock the axes and perform a final verification check before moving to the actual workpiece.

Conclusion

Molybdenum Wire EDM represents the technically superior choice for workpieces exceeding 4 inches in height. It excels when machining dense, hardened materials where standard brass wire suffers from frequent breakage and severe deflection. The high tensile strength and extreme thermal resistance of molybdenum allow operators to maintain critical tension and push aggressive cutting parameters in deep kerfs. Facilities should specify this technology if their production mix consists heavily of tall workpieces or requires heavy roughing of hard metals.

• Audit your current scrap rates caused by wire breaks on parts exceeding 4 inches in height.

• Request test cuts on 6-inch or taller blocks from equipment manufacturers to verify straightness and cutting speed.

• Evaluate the surface finish capabilities of modern closed-loop CNC molybdenum systems against your specific part tolerances.

• Train your operators on U and V axis spark-referencing calibration techniques for high-speed wire systems.

• Implement a strict maintenance schedule for the reciprocating wire drum and the specialized ruby wire guides.

FAQ

Q: What is the maximum workpiece height a Molybdenum Wire EDM Machine can handle?

A: Maximum height is dictated by the machine's physical Z-axis travel. Molybdenum wire effectively cuts parts 10 to 24+ inches tall depending on the specific machine's flushing and tensioning capabilities.

Q: Why does brass wire break on tall workpieces while molybdenum does not?

A: Molybdenum has nearly double the tensile strength and three times the melting point of brass. Brass cannot withstand the high mechanical tension and prolonged thermal loading required to prevent deflection over long vertical spans.

Q: Can I use molybdenum wire on a standard Precision Wire Cutting EDM designed for brass?

A: No. Molybdenum wire is typically used in specific fast-wire or high-speed EDM machines featuring reversing wire drums, specialized V-guides, and different power supply configurations. It cannot run on a standard slow-wire brass machine without impractical hardware modifications.

Q: Does a High Efficiency Wire EDM Machine using molybdenum wire compromise surface finish?

A: Traditional fast-wire molybdenum machines produce a rougher finish on the first pass. Modern multi-pass CNC molybdenum machines can achieve finishes suitable for many industrial tooling applications, though they generally do not match the ultra-fine finishes of high-end slow-wire brass systems.

Q: How do you align the wire for tall workpieces in a molybdenum EDM?

A: Vertical alignment is performed using the machine's U and V axes. Operators utilize physical calibration blocks or a spark-referencing method to ensure the wire is perfectly perpendicular to the X-Y worktable before initiating deep cuts.

Q: What dielectric fluid is used with molybdenum wire EDM?

A: Unlike brass wire EDM machines which standardly run on deionized water, molybdenum wire EDM systems typically use specialized water-based saponification emulsions or synthetic coolants. These fluids assist in cooling, lubricating, and flushing dense particles out of deep kerfs.
