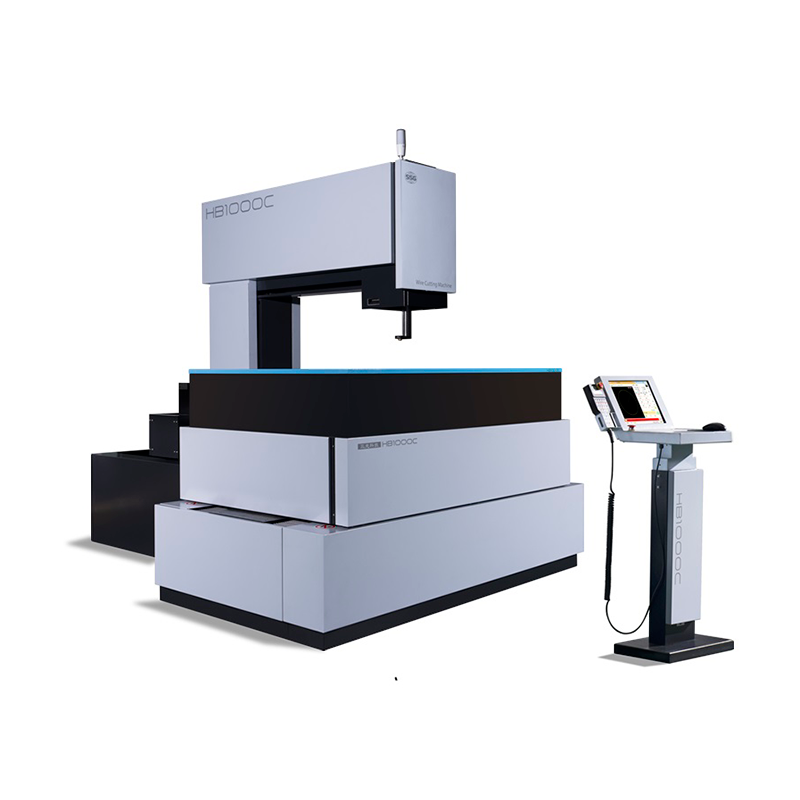

Largest XY Travel Metal Cutting CNC Wire Edm Machine

Comprehensively meet the latest national standard for medium-speed wire cutting EDM ( JB/T11999.1-2014 )

Forward-looking design concept and wide use of low-speed wire cutting technologies ensure unprecedented machining performance and realize machining reliability and consistency on the basis of high efficiency.

Stepping accuracy ＜0.001mm

Best Surface Roughness 0.6μm

Max. Cutting Speed 300mm²/min

HBC series wire, using of HB classic integrated design, the new head design to ensure cutting accuracy, simplify the operation steps, improve the cost performance.

Frame-shaped water-retaining structure prevents leakage of the cutting fluid in the machining area to keep the work environment clean.

The brand-new elevating manger can be lowered to "0" without being opened or removed, making it more convenient to set work-pieces and greatly saving the space.

On the basis of fully understanding and researching the operating habit of customers and successful experience, a new man-machine interactive system is launched. Its visual and orderly interface helps users to quickly grasp it.

-Copyrighted Windows platform makes the system stable and reliable.

-High resolution 15in large screen display

-The hand feeling of keyboard and mouse is excellent.

- Powerful technological parameter database.

A richly functional operating system

• Equipped with a drawing board and automatic programming function, multiple CPUs enable simultaneous processing and programming.

• Parallel compensation, corner rounding setting, program mirroring, corner optimization, proportion scaling, etc.

• Automatic benchmark finding and automatic slope measurement;

• One-way trimming tool, program empty run, stroke detection;

• UPS power failure protection.

UPS power failure protection

• Laser ranging calibration, pitch compensation data are enabled in real time;

• The multi-coordinate system function enables quick switching among various workpieces.

• The X and Y axes can be freely swapped to adapt to different processing conditions and working habits.

• The remote controller allows for freely setting the moving speeds of each axis. Processing information tracking record, processing monitoring, ensuring safe operation when there is no one processing;

• Remote access system and remote control assistance (optional);

• MES Cloud Data Service (optional)

Hardware configuration

• Electric vertical movement along the Z-axis;

• Non-electrolytic power supply;

• Integrated lifting safety door

• A 130L large-capacity water tank, with a multi-stage circulation filtration system, and filtration accuracy of 0.01mm;

• Manual control box, industrial-grade LCD monitor;

• Mitsubishi AC servo system from Japan;

• USB and LAN data interfaces

Centralized lubrication oil supply device

• Concealed circular LED working lighting, three-color working status indicator lights;

• Aluminum processing module (optional)
