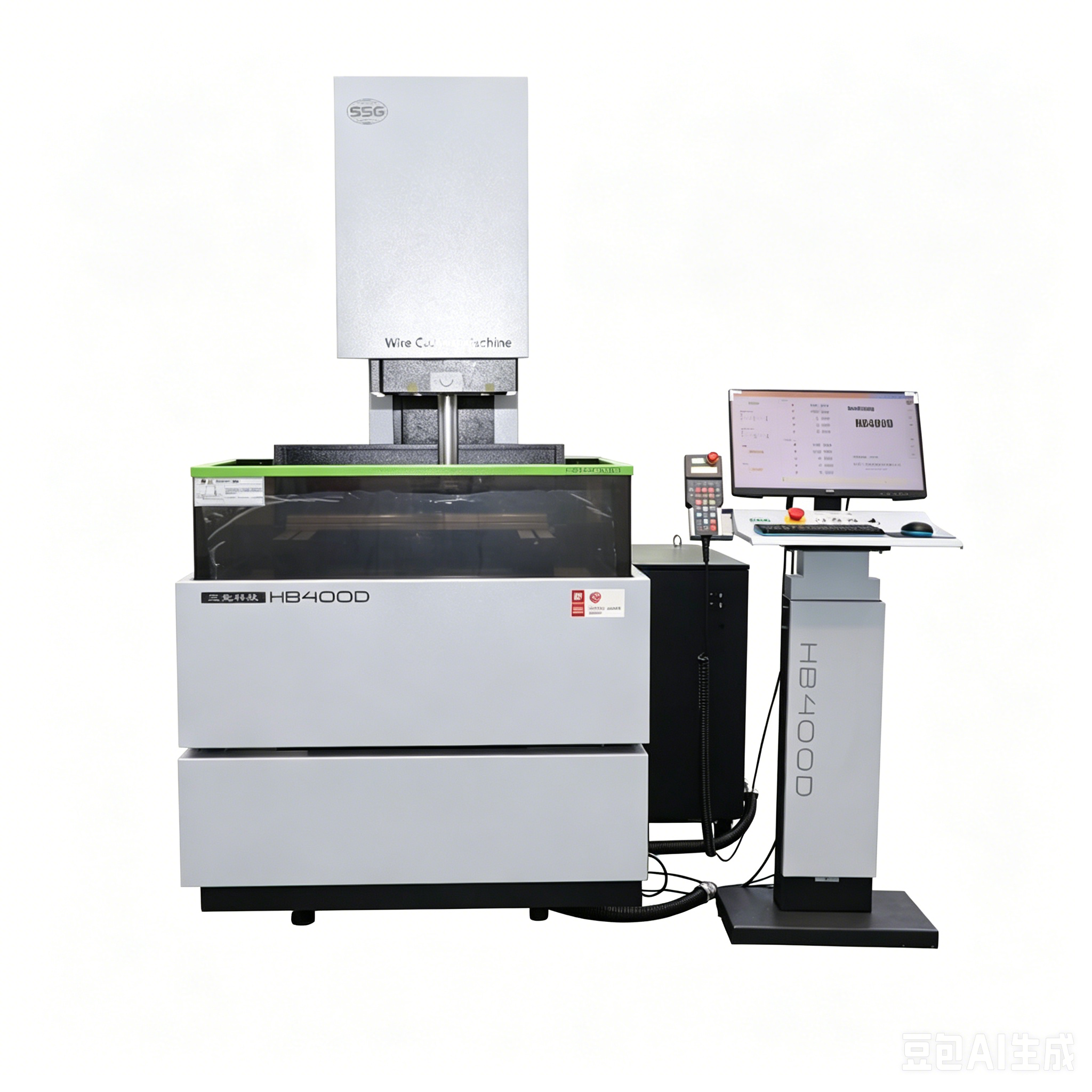

| Model | HB400D | |
| Machine Body | X/Y Travel | 400×300mm |
| Electrode wire diameter | φ 0.10-φ0.25 mm | |
| Wire speed | 1.18-11.8 m/s | |
| Net weight / gross weight | 1900 kg/2500 kg | |
| Machine dimension | L2020x W1700mm | |
| Workpiece | Max. cutting thickness | 300mm |
| Max. cutting taper | ±10°/ 100mm | |
| Max. workpiece size | 930mm*550mm*300mm | |
| Max. workpiece weight | 500kgs | |
| Working Fluid Tank | Filtration accuracy | 0.01mm |
| Capacity | 130L | |
| Working Method | Multiple filtration system | |
| Pulse Power Supply | Max. Cutting Speed | ≥300mm²/min |
| Best Surface Finish | Ra≤0.6μm | |
| Max.Current | 12A | |
| CNC Power Supply Unit system | Hardware Configurations | Ac servo system USB and LAN data interfacesFour-axis pitch compensationCentralized lubrication oil supply |
| Connecting Port | USB, LAN | |
| Program Code | ISO Code | |
| Axis Numbers | 4-axis Simultaneous Control, Realizing pitch compensation | |
| Joy Stick | Standard | |
| Language | Chinese, English, Korean, Japanese | |
| Aluminum Machining | Option | |
| Titanium Machining | Standard | |
| Z axis numerical control | Standard | |
| Power Supply | Power | 3~380V+10% 50±10Hz |
| Environment Temperature | 10~35℃ | |
| Power Consumption | 1.5 KVA | |
Centralized Lubrication for screw of guide rails keeps workshop clean and tidy.
High speed nonelectrolyte power to inhibit electrolytic corrosion, to prevent the formation of "softening layer" and improve the surface quality
 |  |
Operation System
Built-in programming graphics and automatically prepared machining code programs. The multi-CPU function enables simultaneous processing and programming.
Parallel compensation, clear angle setting, program image, corner optimization, scaling and other functions opened.
Laser ranging calibration and pitch compensation data opening real-time on.
Multiple coordinate system can switch among workpieces rapidly.
Exchange X and Y axis randomly to adapt different machining state. Set wire controller's move speed freely.
Record machining tracking information, to monitor machining during unmanned operation to ensure safety.
