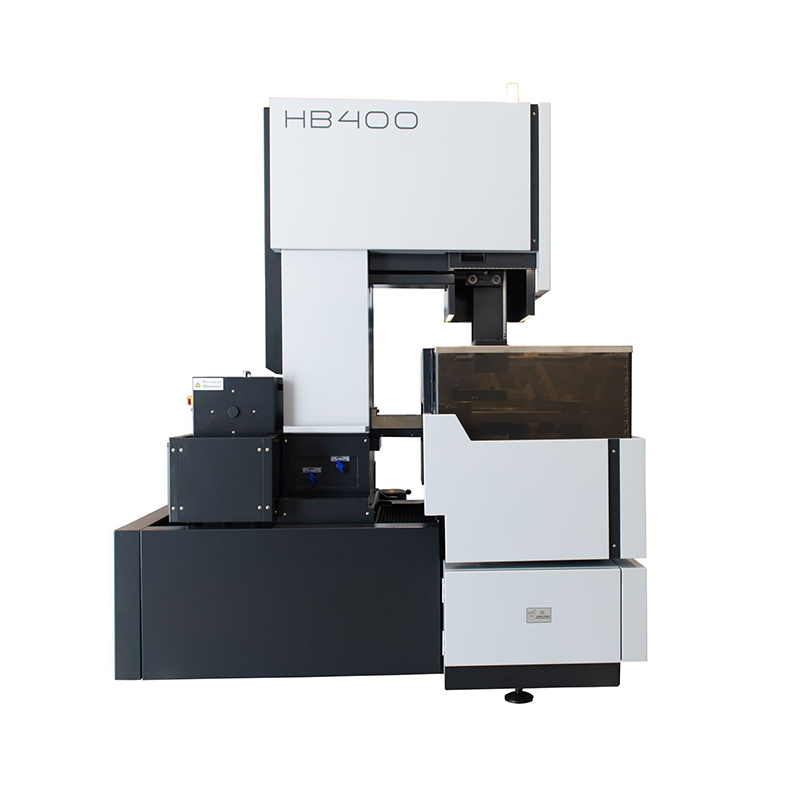

High Precision Linear Motor Small XY Travel Wire Cut EDM Machine

Linear motors are the "magnetic levitation" in machine tools. Due to the absence of mechanical contact, they can achieve high responsiveness and eliminate problems such as reverse clearance, wear, quadrant bulges, etc., maintaining accuracy for a long time.

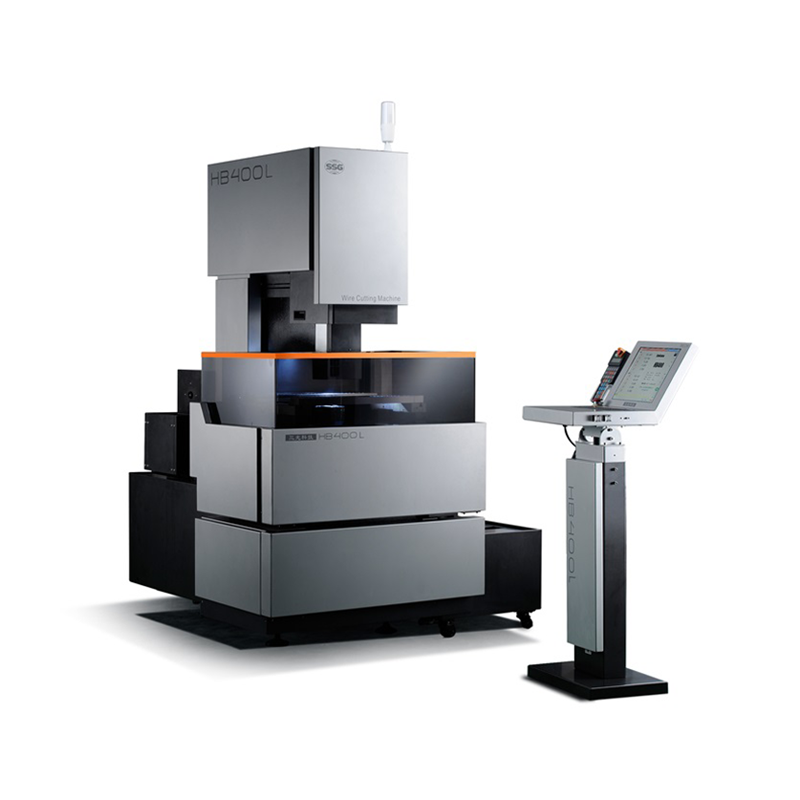

The linear motor-driven HB400L and HB600L wire-cutting machine tools with five-axis full CNC have undergone another comprehensive upgrade in performance, providing higher precision guarantee and a better operating experience for you with high requirements.

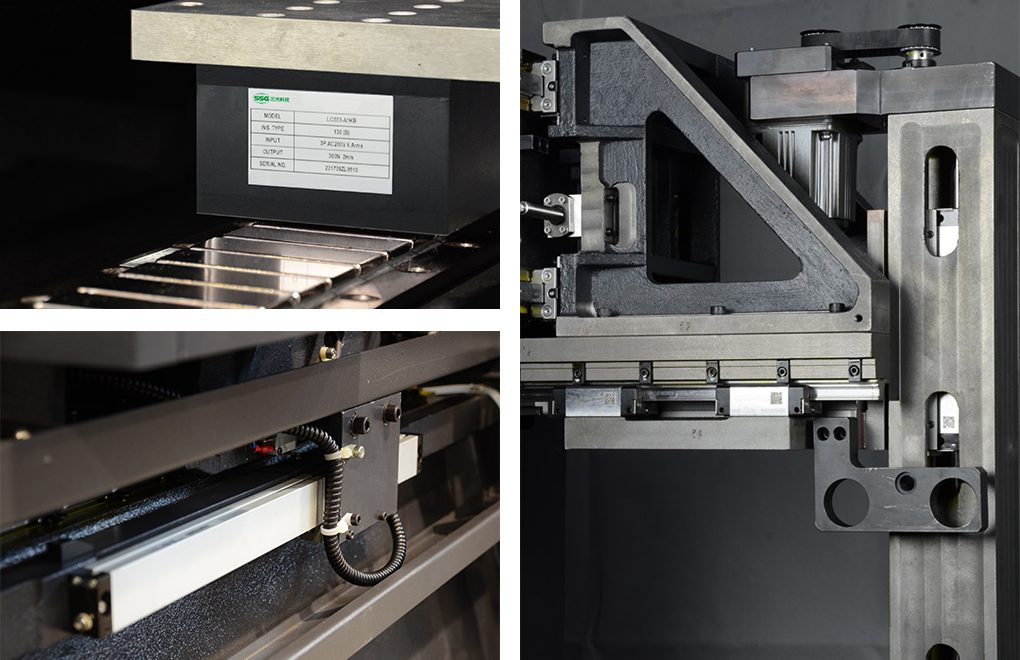

The full-loop closed-loop digital grating ruler directly reads the position information, with higher precision and longer service life.

CNC Z-axis enables precise positioning, eliminating the need to worry about taking out waste materials. The slope processing accuracy is higher and the operation experience is better.

Elaborate manufacturing

Comprehensively meet the latest national standard for medium-speed wire cutting ( JB/T11999.1-2014)

The use of dual-frequency laser interferometer, three-coordinate measuring instrument, ball-bar, geometric accuracy measuring instrument and other high-precision testing instruments and inspection and test procedures executed in strict accordance with the latest national standard for medium-speed wire cutting run through the whole production process of products, guaranteeing the excellent quality of each product in an all-round way.

Ball-bar is used for dynamic accuracy test to ensure that dynamic performance of the machine tool meets standard requirements.

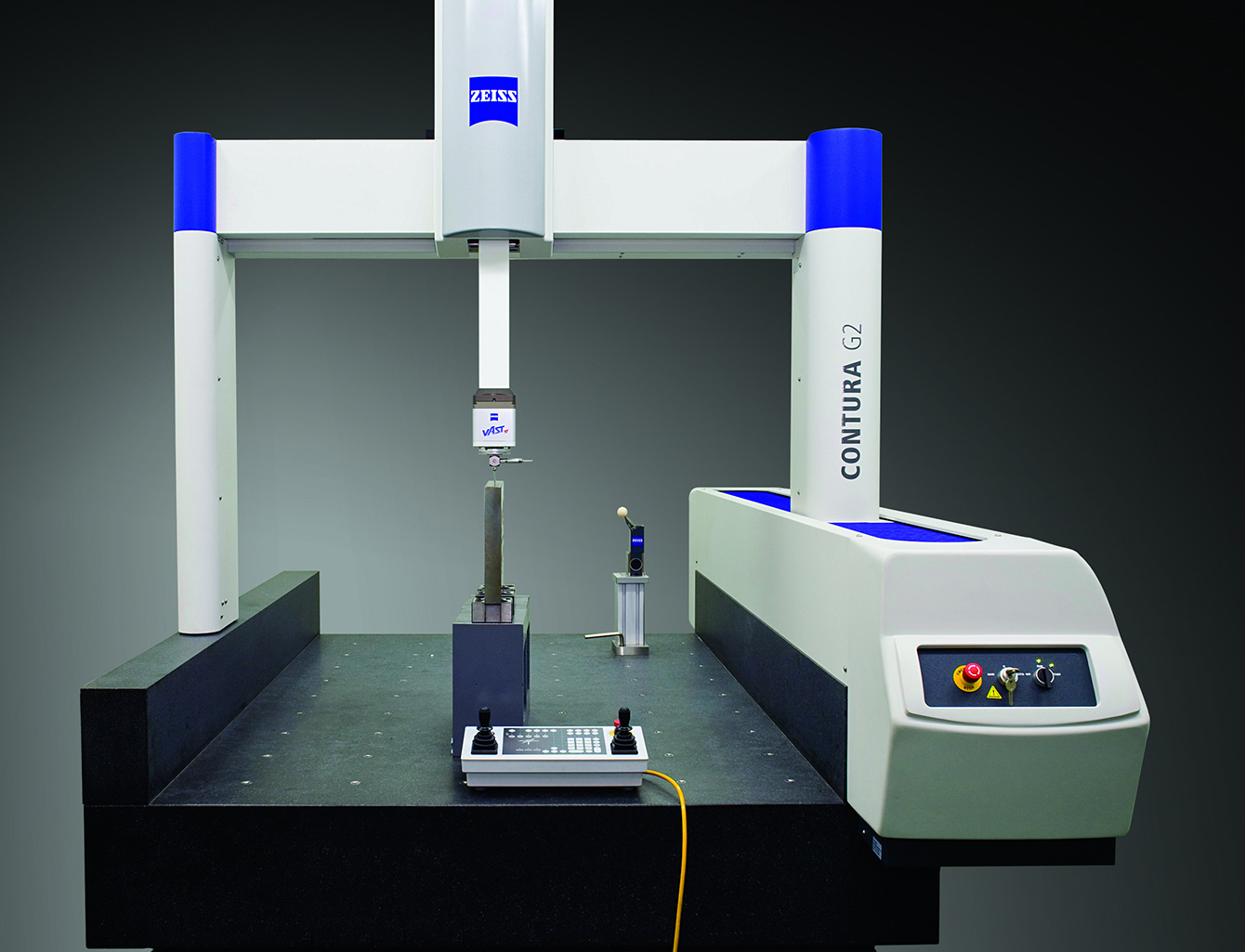

 Key parts of the machine tool are strictly tested with three-coordinate measuring instrument to ensure accuracy of parts assembled by the machine tool.

Strict geometric accuracy test ensures that all geometric accuracy indicators meet standard reguirements.
