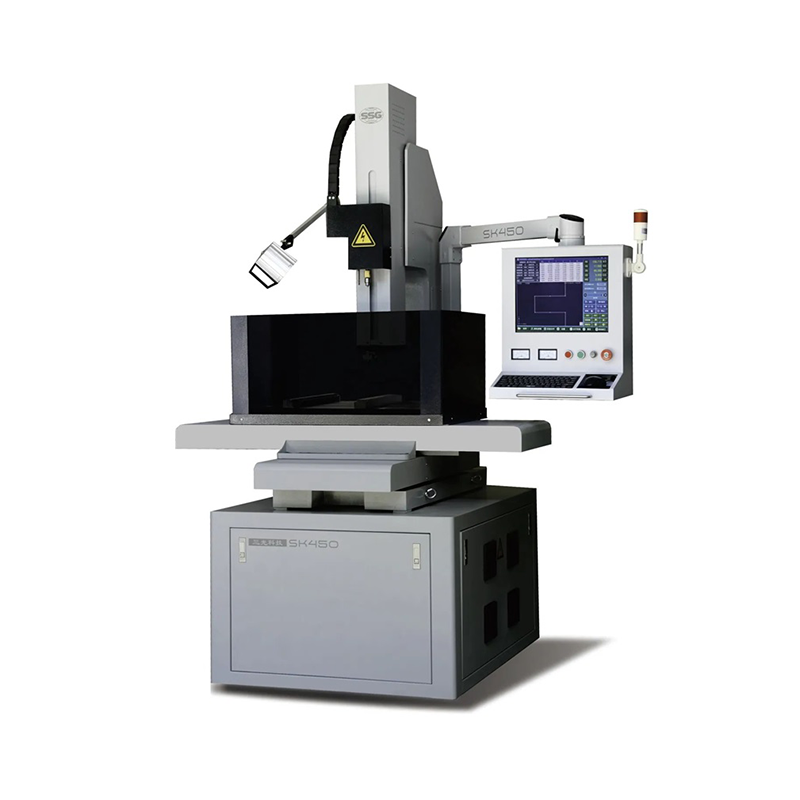

Conventional drilling hits a mechanical wall when dealing with high-aspect-ratio holes, extreme depths, and hardened conductive materials. Tool steels, tungsten carbide, and aerospace alloys like Inconel destroy standard drill bits rapidly. When drill drift, tool breakage, and scrap rates become unacceptable, electrical discharge machining steps in to solve the problem. Machining micro holes or deep cavities carries significant production risks on the shop floor. Selecting the wrong machine architecture leads to excessive electrode wear, poor surface finishes, and bottlenecked throughput. You need a process that eliminates mechanical cutting forces entirely. Choosing the right small hole EDM machine requires a rigorous evaluation of generator technology, dielectric fluid systems, machine rigidity, and automation capabilities. These components must match your specific production tolerances and volume requirements perfectly.
Application Dictates Configuration: The choice between a basic start hole EDM machine and a high-precision CNC small hole EDM depends entirely on whether the hole is a preparatory step for Wire EDM or a final, critical feature.
Dielectric Selection is Critical: Deionized water offers faster cutting speeds for general applications, while oil-based dielectric fluids are mandatory for superior surface finish, tight edge control, matching speed in precision applications, and minimizing the recast layer in aerospace or medical components.
Depth and Diameter Limits: Advanced micro hole drilling machines can achieve diameters as small as 0.065 mm and aspect ratios exceeding 100:1, but achieving these requires specialized electrode guides, breakthrough detection systems, and thermally stable machine builds.
The depth-to-diameter ratio defines the difficulty of any holemaking operation. Standard twist drills struggle past a 10:1 ratio before chip evacuation fails. Electrical discharge machining easily handles ratios of 50:1, 100:1, or higher. You must define the exact aspect ratio required for your specific application before evaluating equipment.
Deep hole operations face unique physical realities. Flushing debris from a cavity up to one meter deep requires high-pressure fluid dynamics. The dielectric fluid travels down the center of a hollow electrode tube. It exits the tip, cools the spark gap, and flushes vaporized metal up the sides of the hole. If flushing pressure drops, debris accumulates at the bottom of the burn. This causes DC arcing, which pits the sidewalls and destroys the electrode. Machine selection must account for high-pressure pump capacities and programmable flushing cycles.
Machining Method | Typical Max Aspect Ratio | Primary Limitation |
|---|---|---|
Standard Twist Drill | 10:1 | Chip packing and tool deflection |
Parabolic Flute Drill | 20:1 | Requires frequent pecking cycles |
Gun Drilling | 50:1 | Requires a pilot hole, limited to larger diameters |
EDM Drilling | 200:1+ | Requires hollow electrodes and high-pressure flushing |
Manufacturing often involves exotic alloys, hardened tool steels, and tungsten carbide. Conventional machining induces mechanical stress and heat into these materials. This leads to distortion, work hardening, and heavy burrs. EDM eliminates these issues by relying on thermal erosion rather than mechanical shearing.
You can drill any electrically conductive material. It does not matter if the material is extremely hard like carbide or soft like copper. The process remains stress-free. However, material conductivity dictates the required power supply. High-resistance materials require different spark generator specifications than highly conductive metals. Your machine must offer adjustable waveforms to match the metallurgy of the workpiece.
Verify the material's electrical conductivity rating before setup.
Select the appropriate electrode material based on the workpiece alloy.
Adjust the generator's on-time and off-time to match the alloy's thermal properties.
Set the flushing pressure high enough to clear heavy particulate without deflecting the electrode.
Every EDM process leaves a heat-affected zone. This includes the recast layer, often called the white layer. You must establish acceptable limits for this layer and any potential micro-cracking. Aerospace and medical components have strict metallurgical requirements that dictate maximum allowable recast thickness.
Roughing operations prioritize speed. Operators use high amperage and long on-times. The recast layer is thicker, but material removal rates are high. Finishing requirements demand metallurgical integrity. You must prioritize surface finish over speed. Advanced generators control the spark energy precisely using low amperage and high-frequency sparks. This minimizes the heat-affected zone and prevents micro-cracking along the hole edge.
Drilling on curved, angled, or irregular surfaces ruins conventional drills. The drill bit deflects, walks across the surface, and snaps. Breaking through an angled back-wall causes heavy burrs and further tool breakage.
An EDM drilling machine solves this geometry problem. The electrode never touches the workpiece. There are no physical cutting forces pushing against the tool. The spark erodes the material straight down, regardless of the entry angle. You can enter a spherical surface or a rough casting without any tool deflection. This is a primary advantage for machining cooling holes in turbine blades or angled injection ports in fuel nozzles.
A start hole EDM machine is primarily a shop floor utility tool. Operators use it to punch threading holes for wire EDM operations. These machines are often manual or semi-automatic. They run on deionized water and use standard brass electrodes. They prioritize raw cutting speed over surface finish or exact concentricity because the hole is just a preparatory step.
Dedicated production machines serve a completely different purpose. They manufacture finished part features. Examples include turbine blade cooling holes, medical fluid ports, or fuel injector nozzles. These machines require high-end generators, precise fluid chillers, and rigid cast-iron structures. The hole they produce is the final product, requiring exact tolerances.
Manual positioning limits precision. It relies on operator skill to turn handwheels and set depths. Manual machines work fine for occasional wire threading holes in low-volume tool and die shops. They fail in high-volume production environments.
A CNC small hole EDM is necessary for production work. Multi-axis CNC controls manage X, Y, and Z axes simultaneously. They can index rotary tables to drill complex circular hole patterns on curved surfaces. CNC systems enable unattended operation. They compensate for electrode wear automatically. If you program a 10mm deep blind hole, the CNC tracks the electrode burn rate and adjusts the Z-axis travel to hit exactly 10mm every time.
Machine casting determines rigidity. Thermal stability prevents tolerance drift during long cycle times. You must differentiate between machines engineered specifically for precision small holemaking and retrofitted general-purpose milling frames.
Purpose-built machines feature heavy Meehanite cast-iron bases. They use linear glass scales for closed-loop positioning feedback down to 0.1 microns. Their active thermal management systems circulate chilled dielectric fluid through the casting to maintain a constant temperature. Retrofitted machines lack this inherent stability. They struggle to maintain micron-level tolerances over a full shift as the shop temperature fluctuates.
Sub-millimeter diameters require specialized equipment. When hole diameters drop below 0.1mm, the physics of the spark gap change. A dedicated micro hole drilling machine can engineer holes down to 0.065 mm. Standard EDM generators destroy electrodes at this scale instantly.
Micro drilling requires high-frequency, low-energy generators. The spark must be incredibly small and fast. This prevents the microscopic brass or copper wire from vaporizing. The machine must also feature ultra-precise spindle rotation and specialized ceramic V-block guides to hold the wire steady and prevent electrode whip.
Dielectric fluid flushes debris and acts as an insulator until the spark gap voltage is reached. The choice between water and oil changes the entire machining dynamic on the shop floor.
Feature | Deionized Water | Oil-Based Dielectric |
|---|---|---|
Cutting Speed | High removal rate. Excellent for roughing passes. | Slower removal rate. Better for finishing passes. |
Spark Gap | Larger gap. Less precise edge control. | Microscopic gap. High precision and tight tolerances. |
Surface Finish | Rougher finish. Thicker recast layer. | Mirror finish. Minimal heat-affected zone. |
Primary Application | Start holes, standard steel production. | Carbide machining, aerospace, micro-precision. |
Deionized water is standard for general applications. It is cost-effective, cools the workpiece efficiently, and cuts fast. Oil-based coolants are mandatory for micro-precision. Oil produces a smaller spark gap. This allows for better surface finish and tighter edge control. Machining tungsten carbide requires oil to prevent cobalt leaching, which would otherwise destroy the structural integrity of the carbide matrix.
The power generator acts as the brain of the machine. It controls the voltage, amperage, on-time, and off-time. Modern adaptive control systems monitor spark gap conditions in real-time. If debris builds up, the system detects a spike in voltage. It automatically increases the off-time to let the fluid flush the gap. It may also trigger a mechanical jump cycle, retracting the electrode to pull clean fluid into the hole. This prevents short circuits and electrode damage.
Fine-finish circuitry is essential for critical components. It shapes the electrical pulse. By controlling the rise time and peak current, the generator minimizes the heat-affected zone. This produces a cleaner hole with better structural integrity, meeting strict aerospace inspection standards.
The electrode guide sits just millimeters above the workpiece. It prevents the long, flexible electrode tube from wandering. You must analyze the rigidity and precision of these guides. High-end machines use sapphire or precision industrial ceramic inserts. They resist wear from the rotating electrode.
Spindle quality matters just as much. The electrode rotates during cutting to ensure even wear and improve flushing dynamics. Evaluate the spindle RPM capabilities. High concentricity tolerances prevent electrode runout. Runout causes the electrode to wobble, resulting in oversized, bell-mouthed holes and poor surface finish.
Drilling into hollow components poses a major risk. When drilling cooling holes in turbine blades, the electrode breaks through the first wall. If it continues, it will strike the back-wall and destroy the part. Automatic breakthrough detection prevents this. The machine senses the change in electrical resistance the millisecond the electrode exits the material. It instantly stops the spark and retracts the Z-axis.
Blind hole depth control requires high Z-axis resolution. The software must factor in electrode wear continuously. As the electrode burns away, the machine recalculates the true depth. Advanced CNC systems handle this wear compensation automatically to ensure accurate blind holes without operator intervention.
High-volume production requires automation to remain competitive. Evaluate the availability of Automatic Tool Changers (ATC). An ATC holds dozens of electrodes. When an electrode burns down to its limit, the machine discards it and loads a new one automatically. Automatic guide changers allow the machine to drill different diameter holes in the same setup.
Assess integration capabilities for robotic part loading and unloading. Pallet systems allow operators to set up multiple jobs outside the machine while it runs. This supports true lights-out manufacturing. Reliable automation turns a standalone machine into a continuous production cell.
Investing in a high-end CNC machine requires significant capital. You must analyze production throughput to justify the expense. Legacy equipment or manual machines have lower upfront costs. However, they require constant operator attention and yield higher scrap rates due to manual depth setting errors.
A modern automated system runs unattended. It produces consistent, high-quality parts. The increase in throughput and reduction in scrapped exotic materials often offsets the initial capital expenditure quickly. Evaluate your volume requirements carefully before choosing a machine tier.
EDM is not a universal solution. You must clearly define when it is not the right choice. The process is strictly limited to electrically conductive materials. You cannot machine plastics, ceramics, glass, or composites.
Cycle times are slower compared to conventional drilling on soft materials like aluminum or mild steel. If you need to drill a standard hole through mild steel, and tolerances are loose, use a twist drill on a machining center. It takes seconds. EDM takes minutes. Reserve EDM for materials and geometries that conventional tools cannot handle.
Operating costs depend heavily on consumables. Electrodes wear down continuously during the burn. You must select the right material and geometry for the job.
Electrode Material | Wear Rate | Best Application |
|---|---|---|
Brass Tubes | High wear rate | Fast cutting in standard steels. Start holes. |
Copper Tubes | Low wear rate | Machining carbide, exotic alloys, blind holes. |
Tungsten-Copper | Extremely low wear | High-precision micro holes, sharp edge retention. |
Electrode geometry also matters. Single-channel tubes have a single hole down the middle. They leave a tiny core at the bottom of blind holes. Multi-channel tubes have an internal web. They burn away the center core entirely, improving flushing in blind cavities. You must also factor in the replacement rates for dielectric fluid, deionizing resin tanks, and fine-micron filtration cartridges. Clean fluid is non-negotiable for precision work.
Advanced machines require specific facility conditions. Discuss floor space requirements before installation. Automated cells with robotic loaders and external filtration tanks take up significant room on the shop floor.
Environmental temperature control is critical for micro-precision. The shop floor must maintain a stable temperature to prevent thermal expansion in the machine casting. A two-degree temperature swing shifts spindle alignment by several microns. You also need to verify electrical supply prerequisites. High-frequency generators require stable, clean power to function correctly without voltage spikes.
Electrode wandering is a physical reality at extreme depths. When performing deep hole EDM, the tube extends far past the guide. High-pressure flushing fluid exiting the tip creates turbulence. This turbulence causes the flexible tube to vibrate and drift off center.
You can mitigate drift through proper setup and programming:
Lower the guide block to within 1mm of the workpiece surface before starting the burn.
Start the hole with a low-pressure flush and low power settings to establish a straight pilot crater.
Gradually increase flushing pressure as the electrode penetrates deeper into the cavity.
Program step-peck cycles to retract the electrode periodically, clearing heavy debris from the bottom of the hole.
Contaminated dielectric fluid destroys part quality. Dirty fluid acts as a conductor. If the fluid is full of suspended metal particles, the spark jumps from the side of the electrode to the debris, rather than from the tip to the workpiece. This is known as secondary sparking.
Secondary sparking blows out the hole diameter, degrades hole straightness, and ruins the surface finish. It also slows down the cutting speed. You must maintain the filtration system rigorously. Replace 5-micron paper filters before they clog. Monitor the DI resin conductivity meter. When conductivity rises above acceptable levels, swap the resin tank immediately. Ensure the clean fluid tank remains free of sludge.
Running a CNC EDM requires specific knowledge. Operators must understand spark gap voltage, off-time ratios, and flushing dynamics. You cannot run it like a standard milling machine. Transitioning from conventional machining to EDM requires dedicated training.
Evaluate the machine's control software interface. It must be intuitive for the operator. Assess its compatibility with your existing shop floor CAD/CAM ecosystems. Direct integration allows programmers to generate complex multi-axis toolpaths offline and send them straight to the machine control, reducing setup time and programming errors.
Request test cuts on your actual production material to verify cycle times and accuracy.
Demand detailed metallurgical inspection reports of the recast layer from the test cuts.
Map out your facility floor space and verify environmental temperature controls.
Audit your existing CAD/CAM software to ensure direct integration with the new machine control.
A: Advanced machines drill diameters down to 0.065 mm. Achieving this requires specialized high-frequency generators, ultra-precise spindle rotation, and oil-based dielectric fluids. These components prevent the microscopic electrode from degrading instantly during the spark cycle. You also need specialized ceramic V-guides to hold the wire steady and prevent whipping.
A: These machines achieve depth-to-diameter aspect ratios exceeding 100:1. In specialized setups with high-pressure flushing and rigid electrode guides, they drill holes up to 1 meter deep into hardened tool steels or exotic alloys. The process eliminates drill drift entirely, ensuring the hole remains straight from entry to exit regardless of the material hardness.
A: A start hole machine is a basic, manual utility tool used to quickly burn threading holes for wire EDM operations. It prioritizes speed over finish. A CNC small hole machine is a highly accurate production system designed to machine final part features. It offers multi-axis control, automated wear compensation, and robotic integration for high-volume manufacturing.
A: Oil-based fluids create a smaller spark gap than deionized water. This provides tighter edge control, superior surface finish, and a minimized recast layer. Oil is mandatory for micro-precision holes and when machining tungsten carbide. Water causes cobalt leaching in carbide, which destroys the material's structural integrity. Oil prevents this chemical reaction entirely.
A: The CNC system continuously monitors the burn rate and calculates electrode wear in real-time. As the electrode tip vaporizes, the machine automatically compensates for the shortened length along the Z-axis. This dynamic wear compensation ensures the final blind hole reaches the exact programmed depth without requiring the operator to make manual offset adjustments.
A: Electrode drift usually stems from excessive distance between the guide and the workpiece. It also occurs when improper flushing pressure causes the long tube to vibrate inside the hole. Additionally, a buildup of debris in the cavity leads to secondary sparking against the sidewalls, which pushes the electrode off center and ruins hole straightness.
