How Does Electrode Geometry Affect Die Sinking Accuracy?

Precision in electrical discharge machining is not solely dictated by the machine's generator; it is fundamentally constrained by the physical geometry of the electrode used. Manufacturers frequently experience dimensional drift, uneven surface finishes, and excessive cycle times due to localized electrode wear and poor dielectric flushing in complex cavities. These issues lead to scrapped parts, increased tooling costs, and compromised ROI on capital equipment.

Mitigating these risks requires a technical understanding of how electrode shape interacts with spark gaps and fluid dynamics. This guide breaks down the structural relationship between electrode geometry and final part accuracy, providing a framework for optimizing tooling and evaluating the capabilities of a modern Die Sinking EDM Machine.

• Geometry Dictates Wear: Sharp corners and thin ribs experience exponentially higher wear rates than flat surfaces, requiring specific orbital compensation strategies.

• Flushing is Geometrically Constrained: Deep, narrow electrode features trap debris, increasing the risk of secondary sparking and DC arcs that destroy part accuracy.

• Machine Capability Matters: Advanced CNC controls are required to execute complex orbital patterns that compensate for geometric degradation during the burn.

• Tooling Strategy Impacts ROI: Splitting complex geometries into multiple simpler electrodes often yields higher precision and lower overall costs than attempting a single complex plunge.

The Physics of Spark Gap and Electrode Geometry

The spark gap, or overcut, is not uniform across all surfaces of a complex 3D shape. Understanding this distribution is a baseline requirement for achieving dimensional accuracy on the shop floor. When you plunge an electrode into a workpiece, the electrical field behaves differently depending on the topography of the tool.

Spark Gap Distribution Across Complex Shapes

Spark intensity and gap distance vary significantly between frontal bottom surfaces and lateral side walls. Geometry affects the concentration of the electrical field, creating a "lightning rod" effect on sharp edges and external corners. Electrons naturally seek the path of least resistance, which in EDM translates to the shortest distance between the electrode and the workpiece. However, sharp geometric features concentrate the electrical charge, leading to localized spikes in spark intensity.

Typical spark gap variations range from 0.01 mm for fine finishing passes to 0.5 mm for heavy roughing operations. Complex geometry perturbs these baselines. A flat surface might maintain a consistent 0.1 mm gap, while an adjacent sharp corner on the same electrode might effectively burn at a 0.15 mm gap due to charge concentration. This discrepancy requires careful calculation during electrode design to prevent out-of-tolerance cavities.

Corner Radii vs. Sharp Edges: The Wear Differential

Sharp external corners experience a volumetric wear ratio up to 3 to 5 times higher than flat planes. This corner degradation directly impacts the internal radii of the final machined cavity. The physics of discharge concentration explain this phenomenon: charge density decreases on flat surfaces but spikes exponentially on radii smaller than the discharge gap.

When an electrode with a sharp 90-degree corner begins burning, that corner is subjected to a disproportionate number of discharges. The material at the tip erodes rapidly, rounding off the corner. As the burn progresses, the electrode loses its sharp profile, transferring that rounded shape into the workpiece. This rapid wear necessitates specific compensation strategies, such as using multiple electrodes or advanced orbital patterns, to maintain accuracy.

How Geometry Dictates Flushing Efficiency in a Die Sinking EDM Machine

Inadequate flushing causes debris accumulation, leading to secondary sparking that alters the intended dimensions of the cavity. Efficient debris removal is highly dependent on electrode geometry. If the eroded particles cannot escape the spark gap, they become conductive bridges, causing the machine to arc and pit the surface.

Deep Ribs and Blind Cavities: Managing Debris Evacuation

Depth-to-width ratios exceeding 5:1 or 10:1 often cause passive flushing to fail completely. In these scenarios, the dielectric fluid cannot naturally circulate deep into the cavity to clear the swarf. Integrating internal flush holes for pressure or suction within the electrode geometry itself becomes a mechanical necessity.

Evaluating flushing methods requires looking at the geometric footprint of the cavity:

1. Direct Injection Flushing: Best for open cavities where fluid can be forced directly into the gap from external nozzles.

2. Internal Pressure Flushing: Requires drilling holes through the electrode. Fluid is pumped down through the tool, forcing debris up and out of the cavity. Ideal for deep, blind holes.

3. Internal Suction Flushing: Fluid is drawn up through the electrode. This method pulls debris away from the side walls, reducing taper and improving lateral accuracy.

4. Pulsation/Jump Cycles: The machine rapidly retracts the electrode to create a pumping action, drawing fresh fluid into tight geometries where holes cannot be drilled.

Tapering and Draft Angles for Optimal Fluid Flow

Incorporating draft angles, typically 0.5° to 3°, into the electrode design significantly improves dielectric fluid circulation. A straight vertical wall creates a tight, restrictive channel for fluid and debris. Adding a slight taper opens up the top of the gap, allowing swarf to evacuate more freely.

Improved flushing reduces cycle times, stabilizes the discharge, and prevents localized surface pitting. This simple geometric modification can drastically enhance the performance of a Spark Erosion Machine. When the gap is clear, the generator can maintain a higher duty cycle, completing the burn faster and with a superior surface finish.

Electrode Wear Ratios: Geometry's Impact on Tool Degradation

Manufacturers must balance the cost of manufacturing complex electrodes against the cost of premature tool wear. Geometry plays a dominant role in this equation. You cannot simply apply a universal wear factor to an entire electrode; wear is localized and geometrically dependent.

Frontal vs. Corner Wear Dynamics

Frontal wear results in length reduction, while lateral and corner wear cause profile loss. High-aspect-ratio geometries accelerate localized degradation. Understanding the differences between Volumetric Wear Ratio, Linear Wear Ratio, and Corner Wear Ratio is essential for predicting tool life and maintaining accuracy.

Volumetric wear looks at the total mass lost, which is often misleading for complex shapes. Linear wear measures the shortening of the electrode, which is critical for depth control. Corner wear is the most problematic, as it dictates the minimum internal radius achievable in the cavity. A tool might have a low volumetric wear of 1%, but a corner wear of 15%, rendering it useless for sharp detail work.

The "No-Wear" EDM Paradox in Complex Geometries

Modern "no-wear" or "low-wear" generator settings, which use long pulse durations and positive electrode polarity, cannot be easily applied to thin ribs or sharp corner geometries. These settings rely on building up a protective layer of carbon on the electrode surface.

However, high thermal concentration and current density limitations in sharp areas prevent this protective layer from forming evenly. The heat cannot dissipate fast enough from a thin rib, causing the electrode material itself to melt or sublimate. This contradicts the "no-wear" premise, forcing operators to use shorter pulses and negative polarity, which inherently increases wear but preserves the geometric profile.

Stepped vs. Solid Electrode Designs

Using stepped electrodes distributes wear across different stages of the roughing and finishing process. Instead of plunging one massive, complex shape, the geometry is broken down. A roughing electrode might lack the fine details, focusing only on removing bulk material. A semi-finisher establishes the near-net shape, and a final finisher only burns the last few hundredths of a millimeter to establish the sharp corners and surface finish.

This strategy involves trade-offs between CNC programming time and physical tooling costs. Splitting complex shapes often yields better results than using a single solid electrode, especially when dealing with deep cavities or sharp internal features where flushing and wear are problematic.

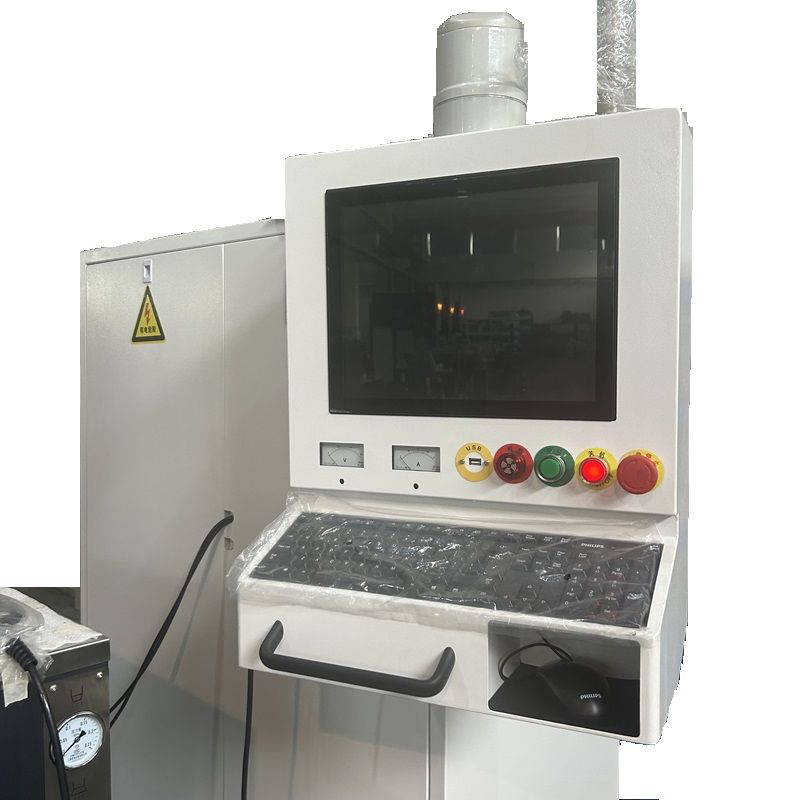

Evaluating CNC Die Sinker EDM Capabilities for Complex Geometries

Modern machine controls mitigate the physical limitations of electrode geometry through advanced software and hardware features. The machine must actively compensate for the fact that the tool is degrading while it cuts.

Orbital Machining Patterns and Geometric Compensation

Spherical, square, and custom orbital movements, such as 2D and 3D vector orbiting, distribute wear evenly across the electrode. Instead of a straight vertical plunge, the machine moves the electrode in a lateral pattern. This allows a slightly undersized electrode to machine a larger cavity, using the sides and corners of the tool more evenly.

A capable CNC Die Sinker EDM controller should offer vector-based orbiting, undercut capabilities, and automated calculation of orbital radius. By orbiting, the machine effectively sharpens the internal corners of the cavity, compensating for the rounded corners of the worn electrode.

Adaptive Generator Controls and Anti-Arc Sensing

Real-time pulse monitoring detects debris accumulation in geometrically restrictive areas like deep pockets. When the gap becomes polluted, the electrical resistance drops, signaling an impending DC arc. Modern machines adjust jump cycles and pulse-off times dynamically to prevent arcing without sacrificing process efficiency.

If the machine senses instability, it will automatically increase the retract height of the jump cycle to flush the gap, or extend the pulse-off time to allow the dielectric fluid to cool. Once the gap is clear, it resumes aggressive cutting parameters.

Multi-Axis Control for Undercuts and Lateral Features

C-axis indexing and simultaneous multi-axis interpolation are necessary for complex, non-vertical geometries. Machining undercuts, threads, or angled lateral ports requires the electrode to move in multiple axes simultaneously.

Machine rigidity and axis resolution, down to sub-micron levels, directly impact the execution of these complex vectors. Any backlash or deflection in the machine frame will translate directly into geometric errors in the workpiece, especially when orbiting a heavy electrode on a long extension.

Material Selection vs. Geometric Complexity

The machinability and structural integrity of the electrode material heavily influence the achievable geometry and final part accuracy. You cannot mill a 0.5 mm thick rib out of coarse-grain graphite and expect it to survive the EDM process.

Graphite vs. Copper in High-Detail Applications

Ultrafine-grain graphite, with particle sizes under 1-5 microns, offers excellent structural stability when milling thin ribs or sharp details compared to copper. Material grain size dictates the minimum achievable feature size and the resulting EDM surface finish. Large grains will chip during milling, destroying the geometry before it even reaches the EDM machine.

Specialty materials like Copper-Tungsten or Silver-Tungsten provide extreme wear resistance for micro-scale geometric features. While difficult to machine, they hold sharp corners significantly better than standard copper or graphite, making them ideal for aerospace or medical components with tight tolerances.

Thermal Expansion and Machinability of the Electrode Itself

An electrode is only as accurate as the milling process used to create it. Copper and graphite have different thermal expansion coefficients, affecting accuracy during long, high-amperage burns. If a large copper electrode heats up during a heavy roughing pass, it will expand, altering the dimensions of the cavity.

High-speed machining of high-aspect-ratio graphite electrodes carries the risk of tool deflection. If the end mill pushes the thin graphite rib during machining, the resulting electrode will be out of tolerance. Managing cutting forces during electrode manufacturing is just as critical as managing spark gaps during the EDM process.

Implementation Risks: When Geometry Compromises a Spark Erosion Machine

Identifying failure points before the burn begins is crucial for maintaining accuracy and preventing scrapped parts. Geometric complexity introduces specific risks that must be mitigated through process control.

Thermal Distortion in Thin-Walled Electrodes

Thin geometries risk thermal expansion and warping during high-amperage roughing passes. The heat generated by the spark gap cannot dissipate quickly enough through a thin cross-section. Mitigation strategies include parameter adjustments, such as lower peak current and increased pulse-off time, and utilizing multiple roughing tools to step down the depth of cut.

Secondary Sparking and Surface Finish Degradation

Trapped carbon and metal particles in tight geometric pockets create conductive bridges, leading to localized over-machining. This secondary sparking pits the side walls and destroys the surface finish. Implementing synchronized jump/pulsation cycles and optimizing dielectric fluid pressure mitigates this risk. The goal is to keep the gap clean, regardless of how restrictive the geometry is.

Achieving High Efficiency Die Sinking EDM: Best Practices for Electrode Design

Actionable frameworks for standardizing the process ensure consistent accuracy and efficiency across multiple jobs.

Mathematical Undersize Calculation

Calculating electrode undersize requires adding the spark gap and orbital radius. This formula must be applied accurately across different geometries to achieve the target cavity dimensions. The basic formula is: Undersize = (Spark Gap + Orbital Radius) x 2. This determines how much smaller the physical electrode must be compared to the final cavity.

Standardizing Blanks and Holders

Repeatable zero-point clamping systems maintain geometric relationships between multiple electrodes. Standardization reduces setup time and minimizes alignment errors during tool changes. If you are using a 3-electrode strategy, all three tools must share the exact same centerline and Z-zero reference point.

Roughing vs. Finishing Electrode Strategies

Optimal undersize allowances for roughing, semi-finishing, and finishing electrodes depend on the complexity of the target geometry. Determining the exact number of electrodes required is based on tolerance requirements and geometric complexity. Proper planning ensures a High Efficiency Die Sinking EDM process.

Conclusion

Electrode geometry is the primary physical constraint on die sinking accuracy; failing to account for wear patterns and flushing dynamics will bottleneck even the most advanced EDM equipment. When evaluating new machinery, prioritize advanced CNC orbital capabilities, responsive jump cycles, adaptive generator technology, and high-resolution multi-axis controls.

To optimize your current operations, implement the following steps:

1. Audit your current electrode failure rates, specifically tracking corner wear and flushing-induced arcing.

2. Evaluate your CAM software's orbital programming capabilities to ensure it can generate complex vector paths.

3. Standardize your undersize calculations based on empirical spark gap data from your specific machine generators.

4. Implement zero-point tooling systems to guarantee repeatability across multi-electrode burns.

5. Request test cuts from machine vendors using your most challenging geometric profiles before committing to new equipment.

FAQ

Q: How does electrode corner radius affect die sinking EDM accuracy?

A: Electrical discharge concentrates on sharp edges, leading to accelerated localized wear. This makes it difficult to produce perfectly sharp internal corners in the workpiece without specific compensation strategies like orbiting or using multiple finishing electrodes.

Q: Why is flushing more difficult with deep, narrow electrode geometries?

A: Tight clearances restrict dielectric fluid flow, trapping eroded particles. This debris causes secondary sparking and dimensional inaccuracies, often requiring internal flush holes or aggressive jump cycles to clear the gap.

Q: Can a CNC die sinker EDM compensate for uneven electrode wear?

A: Yes, modern controllers use programmable orbital patterns to distribute wear evenly and maintain cavity dimensions despite tool degradation during the burn. The machine moves the electrode laterally to cut with the sides rather than just the bottom.

Q: What is the best electrode material for machining thin ribs?

A: Ultrafine-grain graphite offers excellent rigidity and machinability, holding sharp details well during milling. Copper-tungsten is also used for its extreme wear resistance in very thin geometries during the EDM process.

Q: How does the spark gap change with complex electrode shapes?

A: While overcut is generally consistent under stable conditions, poor geometry causes debris buildup that artificially widens the gap through secondary arcing. Sharp corners also concentrate the electrical field, locally increasing the effective gap.

Q: What is the role of orbital machining in a high efficiency die sinking EDM?

A: Orbital machining moves the electrode in specific lateral patterns, distributing wear, improving flushing, and allowing a single undersized electrode to act as both a roughing and finishing tool by expanding the cavity size.
