Modern mold making pushes industrial materials to their absolute limits. Manufacturers routinely face the challenge of machining extremely hard alloys. Traditional CNC milling struggles when cutting materials rated HRC 60 and above. Rotating tools often induce unacceptable mechanical stress. They also suffer from severe deflection when forming complex internal geometries.
The die sinking edm machine serves as the definitive final step in precision mold manufacturing. It empowers machine shops to carve blind cavities and sharp internal corners directly into heat-treated metals. You completely avoid the risk of thermal distortion. You also bypass labor-intensive secondary hand polishing stages.
This technical guide evaluates the core capabilities of this essential technology. We will outline operational trade-offs and define crucial procurement criteria. Tool and die decision-makers will gain practical insights here. You will learn exactly how to integrate this equipment to optimize your most demanding manufacturing workflows.
Primary Function: Primarily utilized for creating intricate blind cavities, deep ribs, and sharp internal corners in plastic injection and die-casting molds.
Performance Benchmarks: Capable of achieving micron-level tolerances (±2 μm) and mirror-like surface finishes (Ra 0.2 μm) on hardened tool steels and tungsten carbide.
Process Advantage: Non-contact machining eliminates mechanical stress, allowing parts to be machined after heat treatment, drastically reducing scrap rates from heat-induced deformation.
Operational Trade-offs: High precision comes at the cost of slower material removal rates (max ~500 mm³/h) and requires continuous management of custom electrodes and dielectric fluid.
The manufacturing industry relies on advanced spark erosion to solve impossible geometric challenges. You cannot cut what a tool cannot reach. This principle drives the specialized applications below.
This remains the single largest industrial application for these systems. Producing high-quality plastic parts requires flawless molds. These molds feature deep ribs, narrow slots, and complex negative spaces. Rotary cutting tools simply cannot reach into these tight areas. A shaped electrode easily plunges into the steelblock. It forms flawless blind cavities required for consumer plastics, electronics casings, and packaging components.
Automotive and aerospace sectors demand parts free of internal stress. Manufacturers use spark erosion for highly complex, stress-free components. Examples include automotive LED lens molds requiring perfect optical clarity. In aerospace, technicians machine high-nickel-content seals and intricate turbine blade fixtures. Traditional cutting tools wear out instantly against high-nickel alloys. Spark erosion handles these exotic materials effortlessly.
Medical manufacturing requires surgical precision. Micro-molds produce tiny implants, miniature surgical instruments, and small gears. You can utilize micro-electrodes measuring just 0.1 to 0.5mm in diameter. The process exerts virtually zero cutting force on the workpiece. This allows shops to machine extremely thin-walled components. You avoid crushing or bending delicate titanium and stainless steel medical parts.
Conventional machining relies on shear force. The die sinking edm process operates on controlled electrical vaporization. This fundamental difference unlocks unique technical capabilities.
Traditional workflows follow a strict sequence: roughing, heat treatment, hard milling, and hand polishing. This sequence carries a high risk. Heat treatment often warps parts. You lose critical dimensional accuracy. Spark erosion bypasses this risk completely. It uses high-frequency sparks reaching up to 100,000 discharges per second. The equipment vaporizes materials regardless of their hardness rating. You can machine the part after it undergoes heat treatment. This drastically improves your ROI by reducing scrap rates from heat-induced deformation.
You can achieve extreme precision when you correctly control the spark gap.
Precision Data: Modern CNC sinker machines maintain incredible consistency. They hold tolerances of +/- 0.002 mm to 0.004 mm across extensive discharge cycles.
Surface Quality: Operators manipulate discharge energy to roughly 5μJ. They use high-frequency pulses exceeding 250kHz. This combination achieves high-gloss, mirror-like finishes. You can reach an Ra 0.2μm finish. This effectively eliminates manual polishing labor.
Physical cutting tools push against the metal. This pressure creates micro-fractures in brittle materials like tungsten carbide. Spark erosion is entirely non-contact. The electrode never touches the workpiece. It maintains a precise 5-50 micron spark gap. There is zero tool pressure. You protect delicate mold features and preserve the structural integrity of advanced carbides.
Shop owners must allocate the right job to the right machine. Understanding the boundaries of each technology prevents costly production delays.
CNC milling excels at rapid material removal. You should use milling for fast bulk roughing and cutting standard external geometries. Milling removes soft steel quickly and efficiently. However, milling leaves a radius in every internal corner.
You must switch to a sinker machine for internal blind corners. It leaves sharp corners smaller than 0.1mm. You also need it for deep cavities with high depth-to-diameter ratios. Finally, it is mandatory when cutting high-nickel alloys or tungsten carbide where endmills break.
Wire EDM and sinker machines share basic electrical principles but serve different geometric needs.
Geometric Limits: Wire EDM is strictly restricted to 2D or through-hole profiles. It uses a continuous brass wire cutting like a bandsaw. Sinker machines manage complex 3D blind profiles. They use custom-shaped 3D electrodes to burn specific shapes into a solid block.
Tooling Costs: Wire EDM boasts lower setup costs. The brass wire is cheap and standardized. Sinker machining requires an upfront investment. You must design and mill custom graphite or copper electrodes before the sparking process begins.
Below is a standardized decision matrix for machine shop planning:
Feature Focus | CNC Hard Milling | Wire EDM | Sinker EDM |
|---|---|---|---|
Primary Geometry | External 3D shapes, shallow pockets | 2D through-holes, complex perimeters | 3D blind cavities, sharp internal corners |
Material Hardness | Struggles above HRC 60 | Unlimited (must be conductive) | Unlimited (must be conductive) |
Tooling Preparation | Standard endmills (low prep) | Standard spool wire (low prep) | Custom milled electrodes (high prep) |
Achieving micron-level precision introduces unique operational challenges. You must manage consumables carefully to maintain profitability.
Electrode selection heavily dictates both speed and surface quality. You must choose between graphite and copper based on the job requirements.
Material Type | Melting Point | Primary Application | Key Drawback |
|---|---|---|---|
Graphite | 3600°C | High-speed roughing, large cavities | Prone to generating abrasive carbon dust |
Copper / CuW | 1085°C | Fine detailing, ultra-low roughness | Higher material cost, slower machining |
Graphite: This material withstands massive heat. It is ideal for high-speed roughing cycles. However, milling graphite electrodes generates fine dust. You need specialized vacuum systems on your milling machines to handle it.
Copper and Copper-Tungsten (CuW): These offer lower wear rates for fine detailing. Operators frequently use them with negative polarity. This setup achieves ultra-low surface roughness. The trade-off includes higher raw material costs and longer electrode machining times.
Electrode degradation is an unavoidable reality. Every spark removes a tiny fraction of the electrode. If left unmanaged, cavity dimensions will drift. High-end equipment mitigates this issue using sophisticated software.
Modern controls feature AI-driven predictive wear compensation. The machine calculates expected wear and adjusts the Z-axis depth dynamically. Shop managers also employ multi-cavity wear distribution strategies. You program the machine to share wear evenly across multiple roughing and finishing electrodes. This maintains strict dimensional accuracy.
The process melts and cools metal rapidly. This leaves a "white layer" known as the recast layer on the finished part. This layer is highly stressed and brittle. You must minimize it to prevent premature tool failure in the field.
Proper dielectric fluid management is your best defense against thick recast layers. Follow these standard practices:
Optimize Flushing Pressure: Maintain fluid flushing pressure between 0.3 and 0.6MPa. This clears debris instantly and stabilizes the spark gap.
Implement Fine Filtration: Use 3-micron filters. Clean fluid prevents secondary arcing, which damages the mold surface.
Monitor Fluid Temperature: Keep dielectric fluid chilled. Thermal stability prevents the workpiece from expanding during long burn cycles.
Buying a spark erosion system requires strict technical evaluation. You must look beyond standard travel dimensions. Focus on the core components dictating precision and efficiency.
The spark generator acts as the brain of the operation. Evaluate the power supply capabilities rigorously. Modern smart generators adapt to workpiece thickness dynamically. They modulate spark energy in real time to prevent short circuits.
Energy consumption matters greatly for continuous operations. Look for systems featuring advanced power modules. Some newer generators reduce standby and operational energy consumption by up to 43%. This lowers your monthly utility overhead without sacrificing material removal rates.
Skilled EDM operators are increasingly rare. You must rely on software to lower the operator skill floor. Look for seamless CAM software integration. The software should translate 3D CAD models directly into optimal burn parameters.
Hardware automation is equally vital. Demand automated tool changers (ATC) for your electrodes. An ATC holds dozens of roughing and finishing electrodes. It swaps them automatically over the weekend. This enables true lights-out manufacturing and massive productivity gains.
The Z-axis controls the vertical plunge of the electrode. Its agility determines how quickly it can retract to flush out debris. A sluggish Z-axis causes carbon buildup and ruins the part.
Furthermore, shop environments experience thermal fluctuations. Steel expands and contracts with temperature shifts. Glass scale feedback on all coordinates is absolutely essential. Glass scales provide absolute positional accuracy regardless of ball-screw thermal expansion. They guarantee you maintain strict micron-level tolerances across a 40-hour burn cycle.
A die sinking machine does not replace high-speed milling. Instead, it serves as a specialized necessity for the final stage of complex mold making. It picks up exactly where traditional cutting tools fail.
When implementing this technology, prioritize high-quality dielectric filtration and robust electrode strategies. You will conquer brittle carbides and hardened tool steels. You will achieve flawless internal corners and mirror finishes.
As a next step, we recommend conducting a direct time-study in your shop. Compare your current "hard-milling-plus-polishing" routine against a spark erosion workflow. Evaluate your most common complex mold cavity. You will quickly uncover the true ROI through eliminated scrap rates and reduced manual labor.
A: There is no difference. These are simply synonymous terms used interchangeably in the manufacturing industry. They all refer to the exact same process where a shaped electrode plunges into a workpiece submerged in dielectric fluid to erode material via electrical sparks.
A: Generally, no. The process relies entirely on spark erosion. Therefore, the workpiece must be electrically conductive. You can machine materials like hardened steel, aluminum, titanium, and tungsten carbide. Ceramics and plastics cannot be machined using standard spark erosion methods.
A: Machining time varies significantly based on cavity volume, electrode design, and desired surface finish. Roughing cycles remove material at roughly 500 mm³/h. Achieving a mirror-like Ra 0.2μm finish requires slow, low-energy passes. This slower speed is the necessary trade-off for uncompromised, micron-level accuracy.
HB400
HB600
HB800
LA350A
LA500A
LA800
EB450

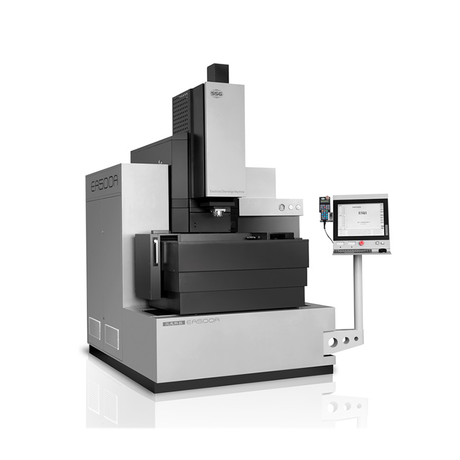

EA500A
