Modern manufacturing demands absolute precision when working with extremely hard materials. You often encounter challenges when machining titanium, Inconel, and hardened steel. Traditional mechanical cutting fails in these scenarios. It causes severe tool wear or unacceptable part distortion. Manufacturers need a better way to shape these tough metals.
You can solve this problem using cnc die sinking edm (Electrical Discharge Machining). This technology is also known as cavity or volume EDM. It uses a non-contact, thermal-electrical subtractive process. The machine erodes material to create precise negative impressions. It excels at forming complex blind geometries.
We designed this guide for engineers and procurement managers. You must evaluate whether these advanced systems fit your specific tooling, aerospace, or medical part production. Read on to discover how spark erosion works. You will learn about its core capabilities and how it compares to alternative machining methods.
CNC die sinking EDM relies on controlled electrical sparks (reaching up to 8,000°C) to melt and vaporize conductive materials without applying mechanical force.
It is the optimal method for machining blind cavities, sharp internal corners, and extremely hard superalloys that 5-axis milling cannot effectively process.
The addition of CNC (Computer Numerical Control) enables multi-axis positioning, automated electrode wear compensation, and highly consistent multi-cavity production.
Investing in die sinking EDM machines requires balancing high precision (tolerances down to ±0.002 mm) against slower material removal rates and the operational costs of custom electrode fabrication.
Understanding this technology requires looking at the microscopic level. The process does not cut metal like a traditional drill or mill. Instead, it vaporizes it using controlled electrical energy.
Material removal happens through a precise, repeating cycle. We can break this cycle down into four distinct stages:
Alignment: Operators submerge a custom-machined electrode and a conductive workpiece in a dielectric fluid. Manufacturers typically use graphite or copper for the electrode. The fluid is usually a specialized hydrocarbon oil.
Discharge: The machine applies a high-frequency current. This current breaks down the fluid's electrical resistance. A plasma channel, or bridge, forms between the electrode and the workpiece.
Erosion and Implosion: Sparks jump across the gap. They generate intense, localized heat reaching up to 8,000°C. This heat melts a microscopic volume of metal. The current then cuts off. The spark collapses instantly. This collapse causes a micro-implosion. The implosion violently ejects the molten material from the part.
Flushing: The dielectric fluid rushes back in. It cools the surrounding area immediately. The fluid then washes away the eroded microscopic particles, known as swarf.
Spark frequency dictates your machining phase. The machine alters spark characteristics to change how fast it removes material. It also controls the final surface quality.
Roughing operations utilize larger, slower sparks. You might see frequencies around 8,000 sparks per second. This setting removes material quickly. Finishing operations require a different approach. The machine generates smaller, rapid sparks. Frequencies can reach up to 40,000 sparks per second. This rapid firing achieves incredibly tight surface finishes. It minimizes the gap distance down to 0.0001 inches.
Machining Phase | Spark Size | Frequency (Sparks/Second) | Primary Goal | Typical Gap Distance |
|---|---|---|---|---|
Roughing | Large | ~8,000 | High material removal rate | Larger clearance |
Finishing | Microscopic | Up to 40,000 | Tight surface finish | Down to 0.0001 inches |
Modern equipment follows a strict standard operating procedure. The integration of computer controls ensures repeatable accuracy.
CAD/CAM Programming: Engineers design a 3D positive electrode in CAD software. The CAM system generates the precise toolpaths required for the erosion process.
Setup and Workholding: Operators secure the workpiece on the machine table. They utilize on-machine measurement tools like touch probes. These probes establish absolute zero points with micron-level precision.
Execution: The CNC controller takes over. It autonomously manages power generation. It adjusts spark intervals and controls the Z-axis plunge depth. Some advanced models control multi-axis orbital movements. The process continues until the machine forms the complete negative cavity.
Every manufacturing technology brings unique strengths and specific challenges. You must understand both sides to deploy these systems effectively.
Engineers choose this process for three primary reasons. These advantages solve problems impossible to address with mechanical tooling.
Hardness Independence: The process machines any conductive material. It ignores physical hardness. You can easily process tungsten carbide, hardened tool steel, and nickel-based superalloys. You do not need to anneal the metal first.
Zero Mechanical Stress: The electrode never touches the workpiece. It is a strictly non-contact process. It exerts zero physical cutting force. This prevents deformation in delicate, thin-walled features.
Complex Geometries: The technology creates shapes that spinning end mills cannot reach. It excels at forming blind keyways. It cuts precise internal splines. It easily produces deep, ultra-thin ribbing for injection molds.
You must plan for specific engineering realities. The process requires careful management of tooling and material science.
Electrode Fabrication and Tool Wear: You cannot use off-the-shelf end mills. You must create a custom, 3D positive-geometry electrode for every desired shape. Furthermore, tool wear remains inevitable. Sparks erode the electrode alongside the workpiece. Advanced CNC software helps predict and compensate for this degradation autonomously.
Overcut: The resulting cavity is always fractionally larger than the electrode. This happens because the spark must bridge a physical gap. Accurate CAD programming must calculate this gap. Programmers apply an offset to compensate for the overcut.
Recast Layer Management: The rapid heating and quenching process alters the metal. It leaves a micro-thin, hardened "white layer" on the workpiece surface. We call this the recast layer. You must control this layer tightly. Critical aerospace or medical applications often require you to polish it off to prevent micro-cracking.
You must place this technology in the context of your broader machine shop. It does not replace milling or wire cutting. It complements them.
Both methods use spark erosion, but their mechanics and applications differ vastly.
Tooling presents the first major difference. The sinking process uses a solid, shaped 3D electrode. Wire EDM uses a continuously fed, fine brass or zinc wire. Feature types dictate which machine you use. You must use a sinker for blind cavities. It is mandatory for closed-bottom holes and mold impressions. Wire EDM works strictly for through-hole cutting. You use it for 2D profile extrusion shapes.
Milling and electrical discharge represent two opposite approaches to subtractive manufacturing.
Milling offers a vastly superior Material Removal Rate (MRR). You should use 5-axis mills for bulk material removal in softer or standard alloys. Spark erosion is slower but provides distinct geometric benefits. A 5-axis mill always leaves a radius in internal corners because the cutting tool spins. Spark erosion easily achieves sharp, precise internal corners. This capability remains essential for injection mold making.
Feature / Capability | Die Sinking EDM | Wire EDM | 5-Axis CNC Milling |
|---|---|---|---|
Tool Type | Custom 3D Electrode | Continuous Fine Wire | Spinning End Mills |
Primary Use Case | Blind cavities, mold making | Through-holes, extrusion profiles | Bulk material removal, complex 3D surfacing |
Internal Corners | Perfectly sharp | Sharp (2D only) | Radiused (tool diameter) |
Material Hardness Limit | None (Must be conductive) | None (Must be conductive) | Limited by cutter hardness |
Smart machine shops combine these processes for maximum efficiency. You rarely use just one method.
A common workflow starts with CNC milling. You use the mill to rough out bulk material while the metal is soft. Next, you harden the part via heat treatment. Finally, you use the sinking process as the final precision finishing step. This sequence avoids any post-hardening distortion. It ensures perfect dimensional accuracy on the finished product.
Bringing this capability into your facility requires careful planning. You must look beyond basic machine specifications.
You need to evaluate your daily operational logistics and consumable usage. Running die sinking edm machines involves continuous material turnover.
Consider your consumables carefully. You must maintain dielectric fluid filtration systems. The process requires high power consumption. You also face the continuous need for graphite or copper electrode machining. Your facility must support these parallel activities.
Automation readiness determines your production ceiling. Look for models featuring an Automatic Tool Changer (ATC) for electrodes. An ATC allows for "lights-out" manufacturing. The machine swaps worn electrodes automatically. This enables multi-cavity consistency without manual intervention during night shifts.
Not all machines offer the same level of technological maturity. You should look for two specific advancements.
First, evaluate the generator technology. Modern smart power generators optimize spark control dynamically. They sense the gap conditions and adjust pulses in real time. This drastically reduces electrode wear during roughing phases. Second, prioritize on-machine inspection. Integrated measurement systems detect cavity dimensions automatically. This reduces the need to remove and re-fixture parts for quality assurance.
You must decide whether to handle this process internally or rely on external partners.
Evaluate your production mix. High-mix, low-volume requirements often demand immense electrode design resources. The specialized nature of electrode manufacturing requires dedicated CAD/CAM programmers. If your team lacks this bandwidth, partnering with a dedicated service provider remains a viable option. However, if blind cavity creation forms the core of your product line, bringing the equipment in-house gives you ultimate schedule control.
This technology remains irreplaceable for tool and die making, injection molding, and processing complex blind features in superalloys.
It provides unmatched precision and sharp internal corners without inducing mechanical stress or part deformation.
Decision-makers should audit their current part geometries. Focus on internal corner requirements and material hardness constraints to see if this technology removes existing bottlenecks.
As a next step, consult with an applications engineer. Run a test cut on your toughest part to evaluate specific tolerances and material removal rates.
A: Any electrically conductive material can be processed, regardless of its physical hardness. Common materials include hardened tool steels, titanium, aluminum, copper, brass, and superalloys like Inconel and Hastelloy. Non-conductive materials like standard plastics or ceramics cannot be machined using this method.
A: ZNC (Z-axis Numerical Control) machines only automate the vertical plunge. The operator controls the X and Y axes manually. CNC die sinking machines control all axes simultaneously. This computer integration allows for complex orbital movements, higher precision, and fully automated multi-cavity processing.
A: High-end equipment can achieve dimensional tolerances as tight as ±0.002 mm (0.0001 inches). It can also produce near-mirror surface finishes. This extreme precision significantly reduces, or entirely eliminates, the need for secondary hand-polishing in mold making applications.
A: Operators must routinely check dielectric fluid levels and fluid clarity. You must inspect and replace filters regularly. Monitoring electrode wear is also critical. Finally, ensure the workpiece and tank remain clear of excessive swarf to prevent secondary arcing and maintain cutting efficiency.
HB400
HB600
HB800
LA350A
LA500A
LA800

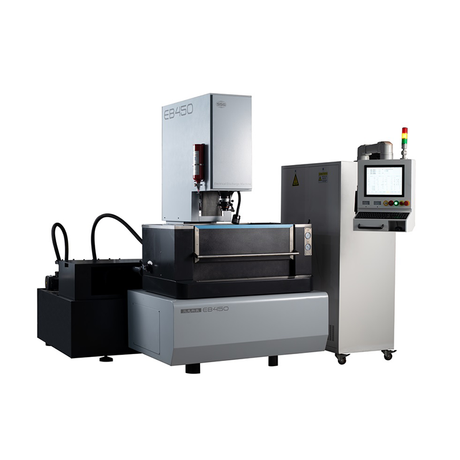

EB450
