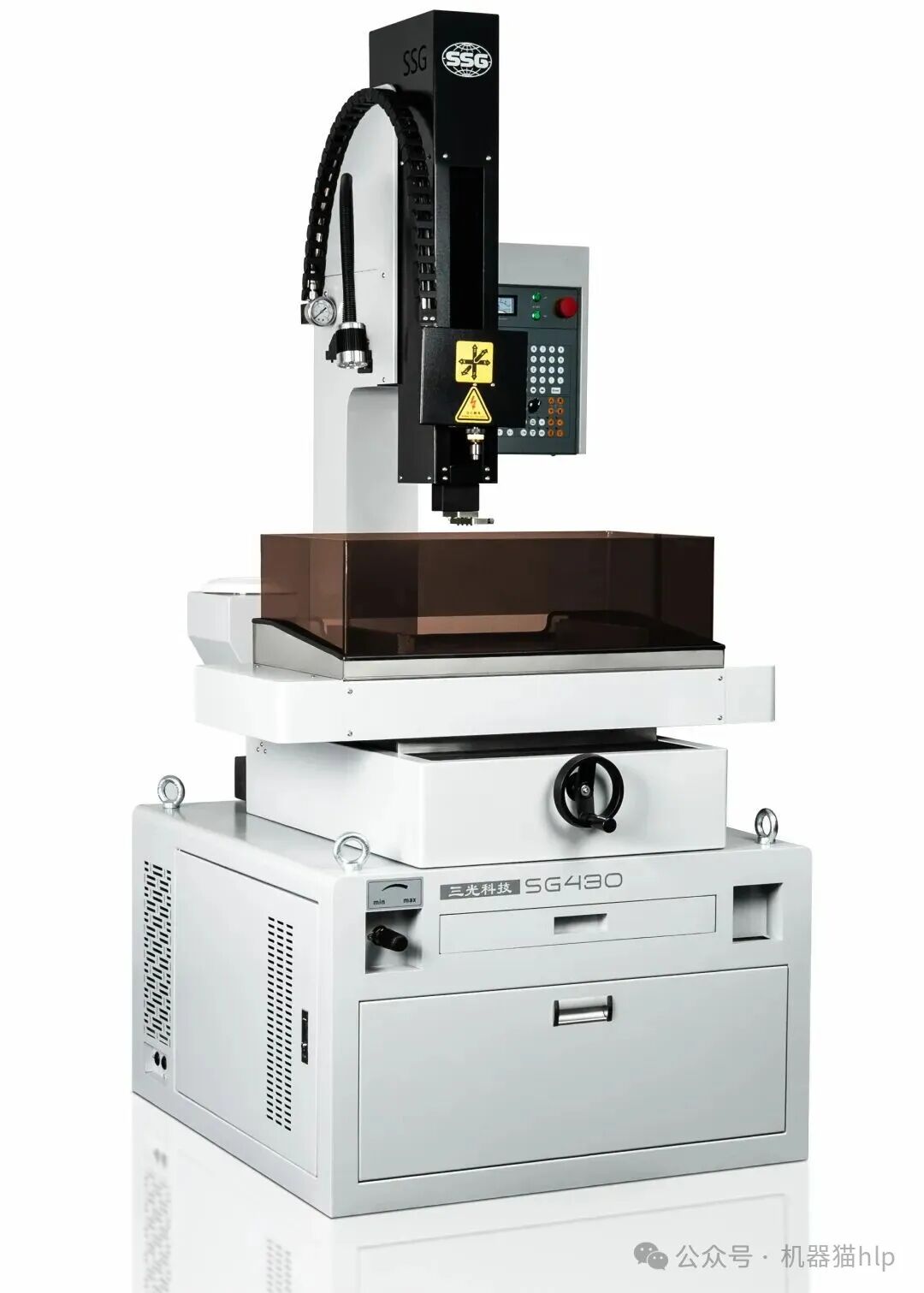

SG430 CNC Small Hole Drilling Machine

Application

Suitable for processing various conductive materials such as stainless steel, quenched steel, copper, aluminum, and hard alloy. It can machine deep and small holes ranging from ∅0.3mm to ∅3mm;

Used for machining micro holes on molds as well as through holes, fiber spinning nozzles and spinning plates, group holes of filter plates and screen plates, cooling holes of motor blades and cylinder bodies, oil and gas passages of hydraulic and pneumatic valve bodies, etc.;

Can also be used to remove drill bits, taps, etc. that are broken in the workpiece.

Performance and Features

◆ Processing hole diameter: ∅0.3 - ∅3mm, maximum depth-to-diameter ratio can reach 300:1;

◆ Maximum processing speed: 30 - 60mm/min;

◆ Suitable for processing various conductive materials such as stainless steel, quenched steel, hard alloy, copper, aluminum, etc.;

◆ Electrode can be directly inserted into the workpiece from the inclined or curved surface for processing;

◆ Directly use tap water as the working fluid, and it can be recycled using a circulating water tank; if using pure water, distilled water, or deionized water, the perforation effect will be better;

◆ Has functions such as edge positioning, centering;

◆ Has depth setting function and intelligent lifting function;

◆ Has one-key processing and power-off memory function;

◆ Has electrode repair and parameter storage function;

◆ Discharge parameters have memory function and have a dedicated parameter library;

◆ The main shaft is equipped with a hybrid motor, with rapid lifting, and excellent perforation stability;

◆ The processed surface has no burrs, low failure rate, and is convenient for maintenance and repair;

◆ X, Y, Z adopt precision ball screws;

◆ LCD three-axis digital display;
